CVP2 Rack Installation
Included in the original shipping carton, locate the following parts:
2 pieces rack bracket
4 pieces insulating washer
4 pieces rack mounting scres (black #10 socket cap screw)
4 pieces screw for rack bracket to CVP2 (#4 phillips scres)
Assemble in the following sequence:
1. Attach one rack bracket to each side of the CVP2 using two #4
Phillips screws per side.
2. Position the CVP2 on the rack.
3. Attach to the rack using the four black #10 cap screws and four
insulating washers (the insulating washer must be between the
screw head and the rack bracket).

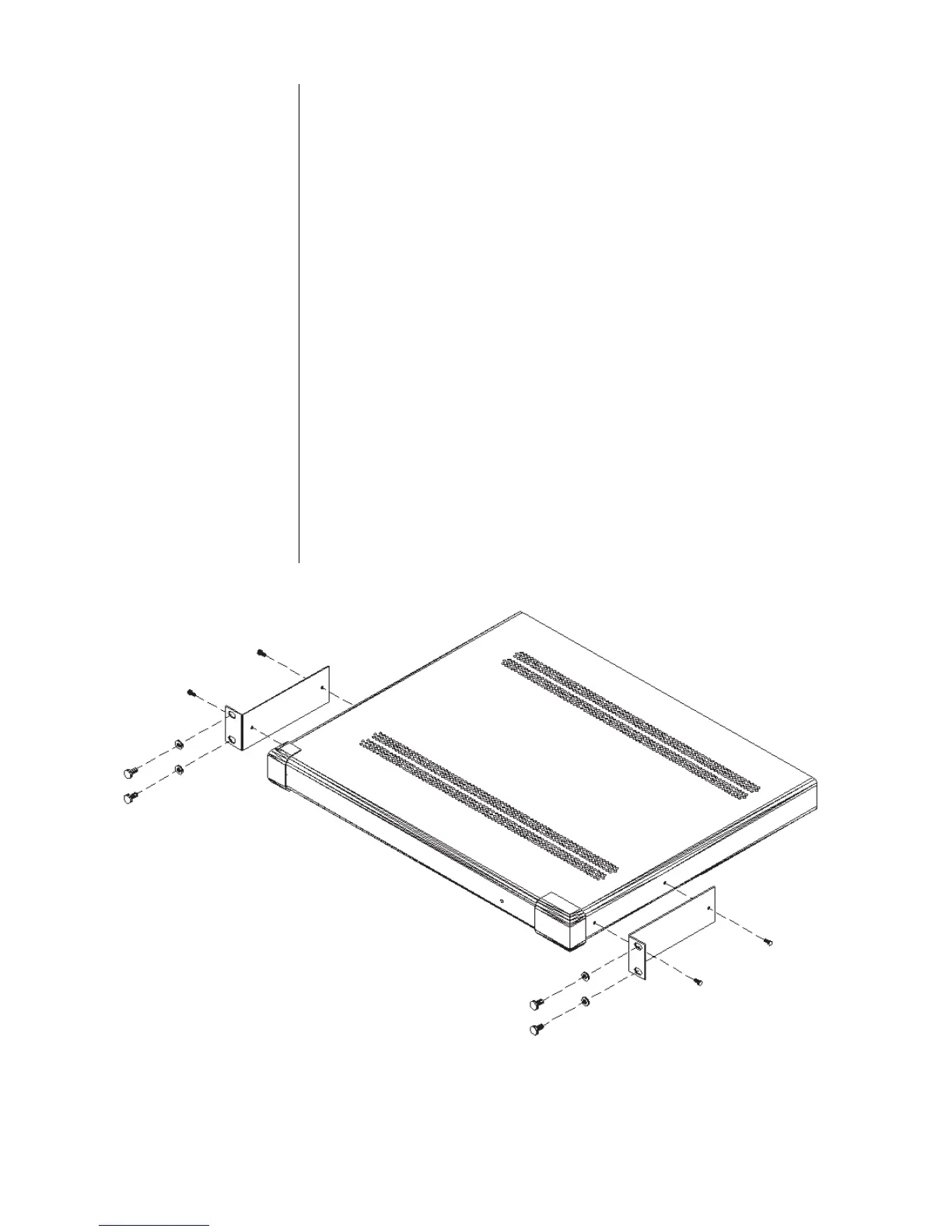

See image:
