Parts/Functions
40

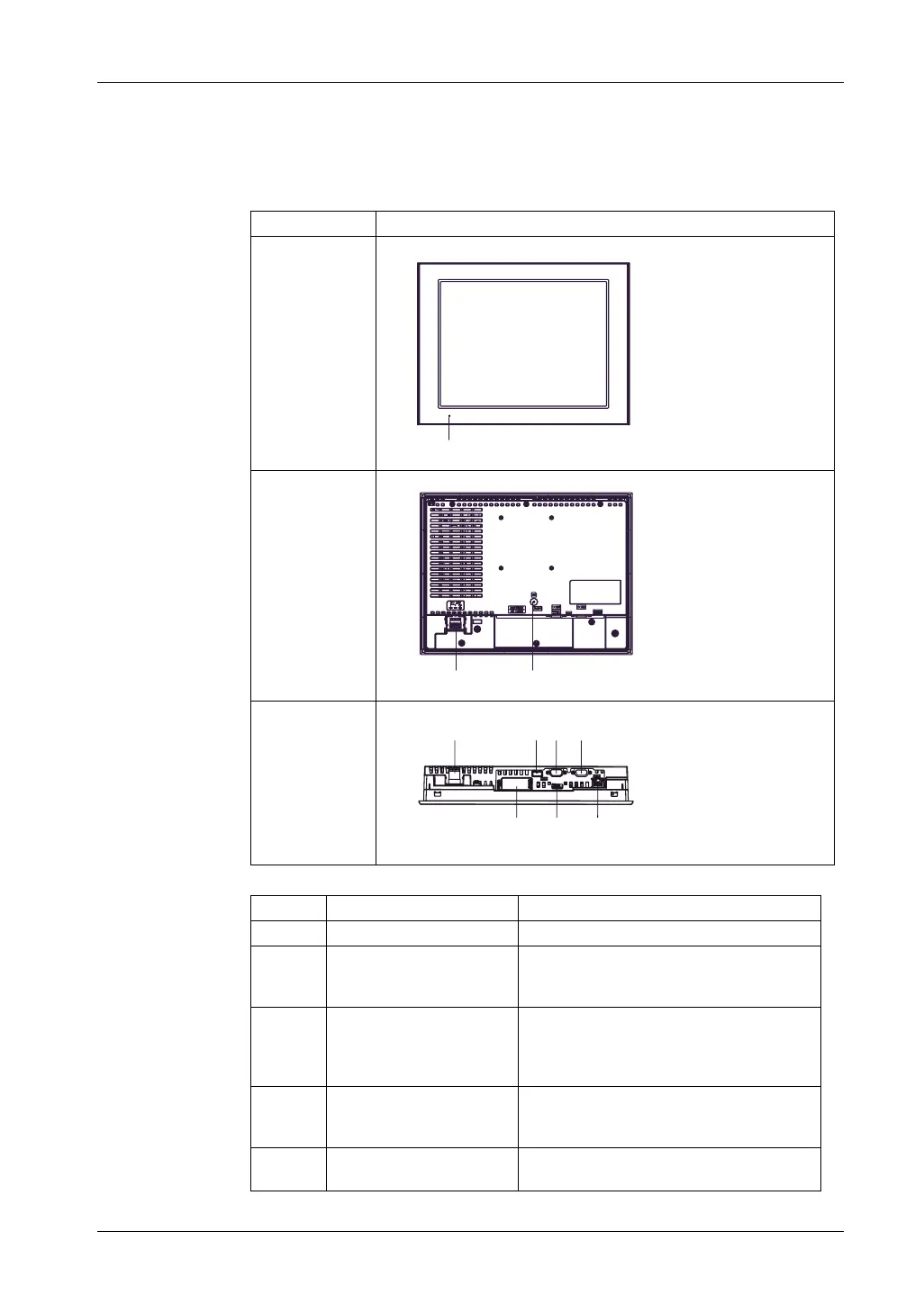

GP-4600 Series Parts Identification
NOTE:
z If you are using the rear mount model, refer to Parts Identification and Functions
(see page 176).
Side GP-4600 Series
Front
Rear
Bottom
Part Name Description
A Status LED
*1
B Power Input Terminal Block
(AC model), Power Plug
Connector (DC model)
-
C
SD Card Access LED
*2
This lamp lights up when SD Card is inserted.
NOTE: Do not remove or insert the SD Card
when the LED lamp is on. Doing so may
damage data on the SD Card.
D
Ethernet Interface
*3
Ethernet transmission interface (10BASE-
T/100BASE-TX)
Connector: Modular jack (RJ-45) x 1.
E USB (mini-B) Interface Conforms to USB2.0 (mini-B) x 1.
Communication Distance: 5 m (16.4 ft) or less.
A
BC
BIHG
FE D
