5
M10 x 127mm Button Screw (83)–2
M10 Locknut
(81)–2
M8 Jam Nut
(79)–5
Wave Washer
(111)–2
M8 Washer
(88)–6
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer (90)–3
M8 x 41mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–8
M4 x 32mm
Round Head
Screw (105)–6
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
M4 Split
Washer
(112)–8
M4 Washer
(102)–8
M4 x 47mm Screw
(108)–2
M4 x 16mm
Blunt Screw
(104)–8
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

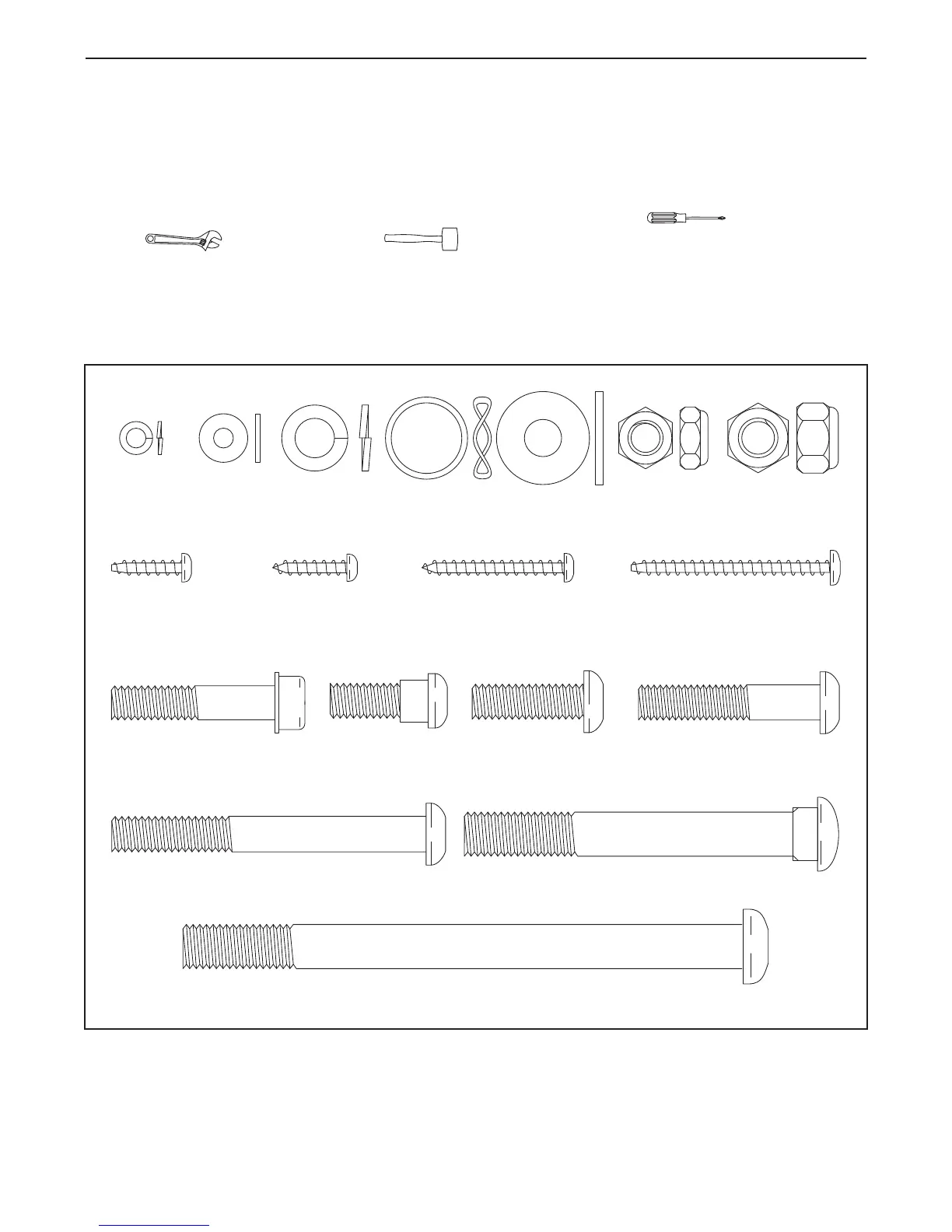

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
