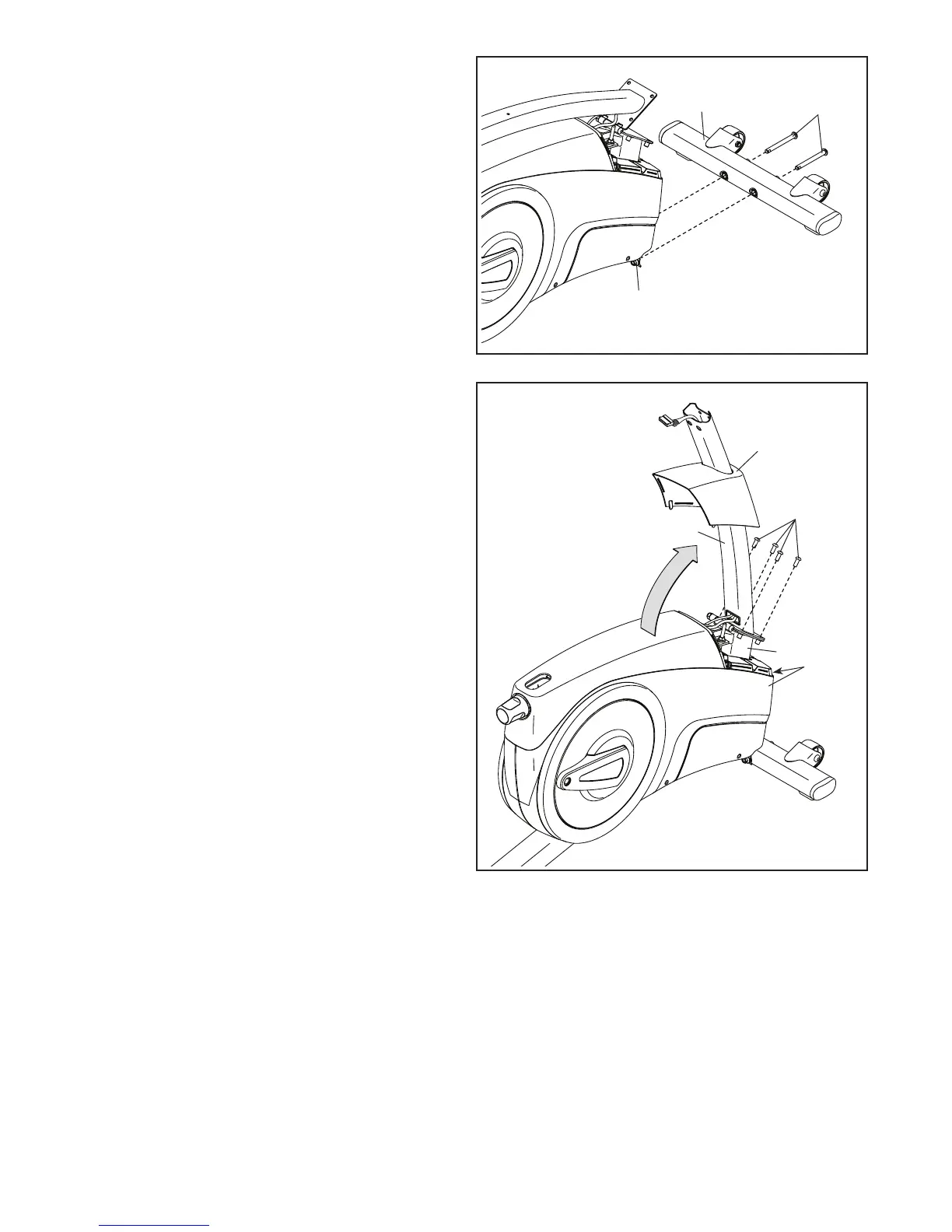

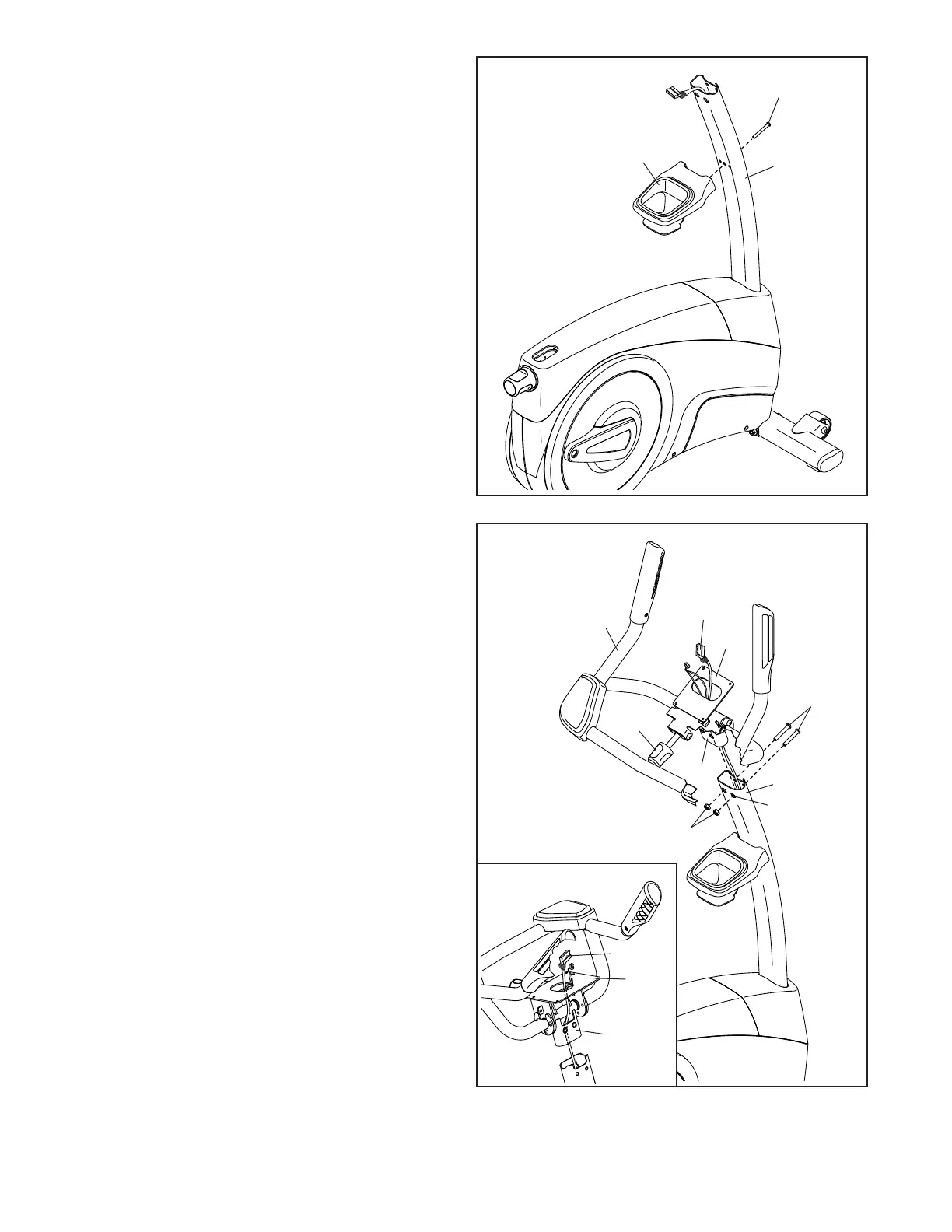

3. Set a sturdy piece of packing material under the
front of the Frame (1).
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 98mm Screws (53).
Remove the packing material.
3
53
2
1
4
4
1
9
65
10, 11
4. With the help of a second person, raise the
Upright (4) to the vertical position. Have the
second person hold the Upright until you
complete this step.
Attach the Upright (4) to the Frame (1) with four
M8 x 20mm Screws (65); start all the Screws,
and then tighten them.
Next, orient the Front Shield Cover (9) as shown,
and slide it downward onto the Upright (4). Then,
press the Front Shield Cover onto the Right and
Left Shields (10, 11).
To Next Page
