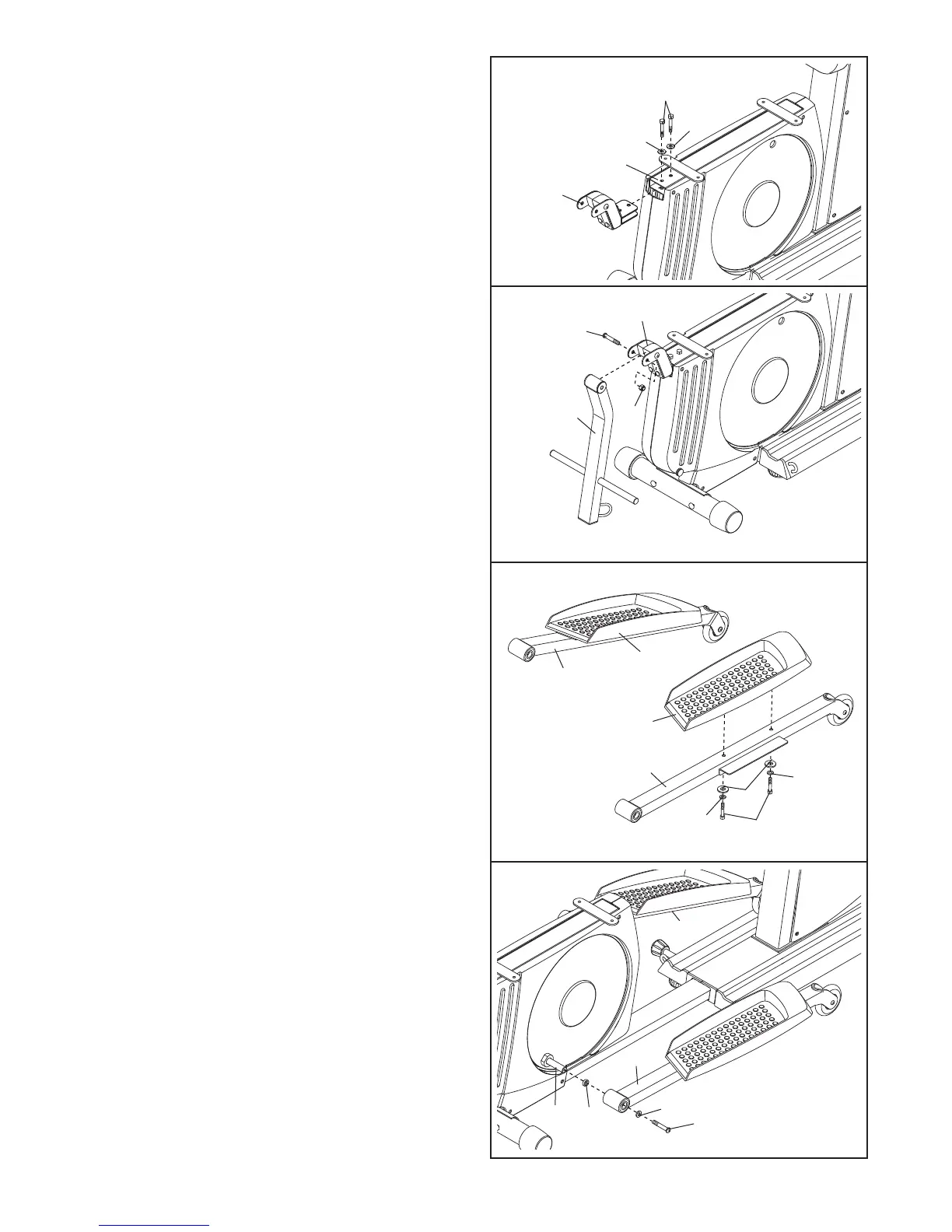

13. Attach the Right Pedal (28) to the Right Pedal
Leg (8) with two M8 x 51mm Button Screws (98),
two M8 Split Washers (140), and two M8
Washers (139).
Repeat this step with the Left Pedal (27) and
the Left Pedal Leg (7).
14.
Slide a Plastic Spacer (180) onto the right Crank
Shaft (68). Orient the Right Pedal Leg (8) as
shown. Attach the Right Pedal Leg to the Crank
Shaft with an M8 x 19mm Button Screw (94) and
an M8 Large Zinc Washer (74).
Repeat this step with the Left Pedal Leg (7).
7
27
28
98
8
139
140
140
14
8
7
68
94
74
180
12. Grease an M10 x 75mm Button Bolt (129). Attach
the Leg Lever (4) to the Leg Lever Bracket (14)
with the Bolt and an M10 Nylon Locknut (81). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
11. Attach the Leg Lever Bracket (14) to the Seat
Base (2) with two M8 x 40mm Button Screws
(142) and two M8 Split W
ashers (140).
11
12
14
14
129
814
140
140
142
2
13
