pro.point 18V Cordless Drill - Parts Breakdown

18V Cordless Drill
13
For technical questions call: 1-800-665-8685
8353906 V 2.0

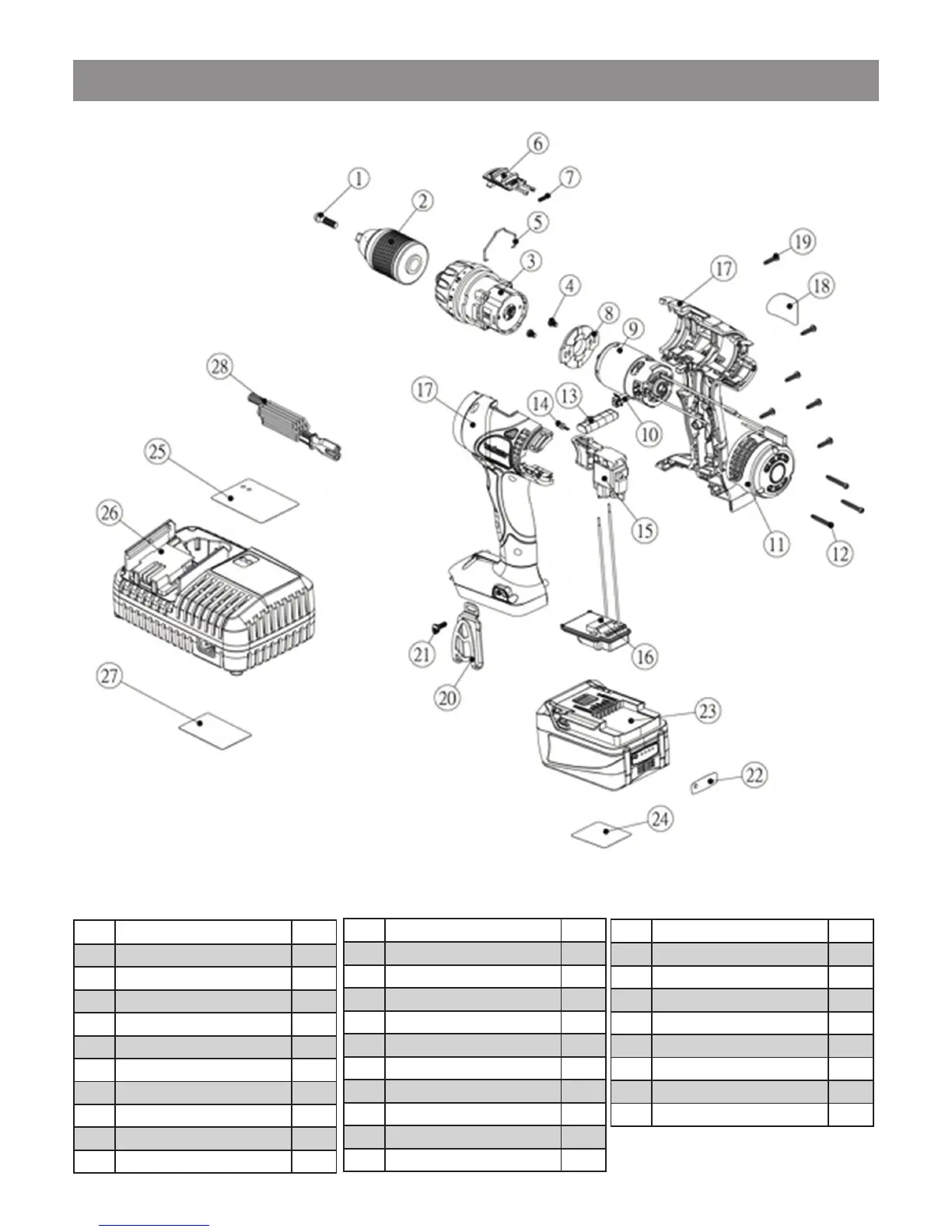

PARTS BREAKDOWN
No. Description Qty.
1 Chuck Screw 1
2 Keyless Chuck 1
3 Gear Box Ass’y 1
4 Screw 2
5 Speed Change Spring 1
6 High/Low Speed Rod 1
7 Knob Spring 1
8 Motor Connector 1
9 Motor Ass’y
10 Carbon Brush Ass’y 2
No. Description Qty.
11 Housing Back Cover Ass’y 1
12 Screw 3
13 Forward/Reverse Rod 1
14 LED 1
15 Main Switch 1
16 Discharge Protector 1
17 Housing L&R 1
18 Housing Label-R 1
19 Housing Screw 7
20 Hook 1
No. Description Qty.
21 Hook Screw 1
22 Fuel Gauge Label 1
23 Battery Pack 1
24 Battery Label 1
25 Charger Upper Label 1
26 Charger 1
27 Charger Lower Label 1
28 Power Cord 1
