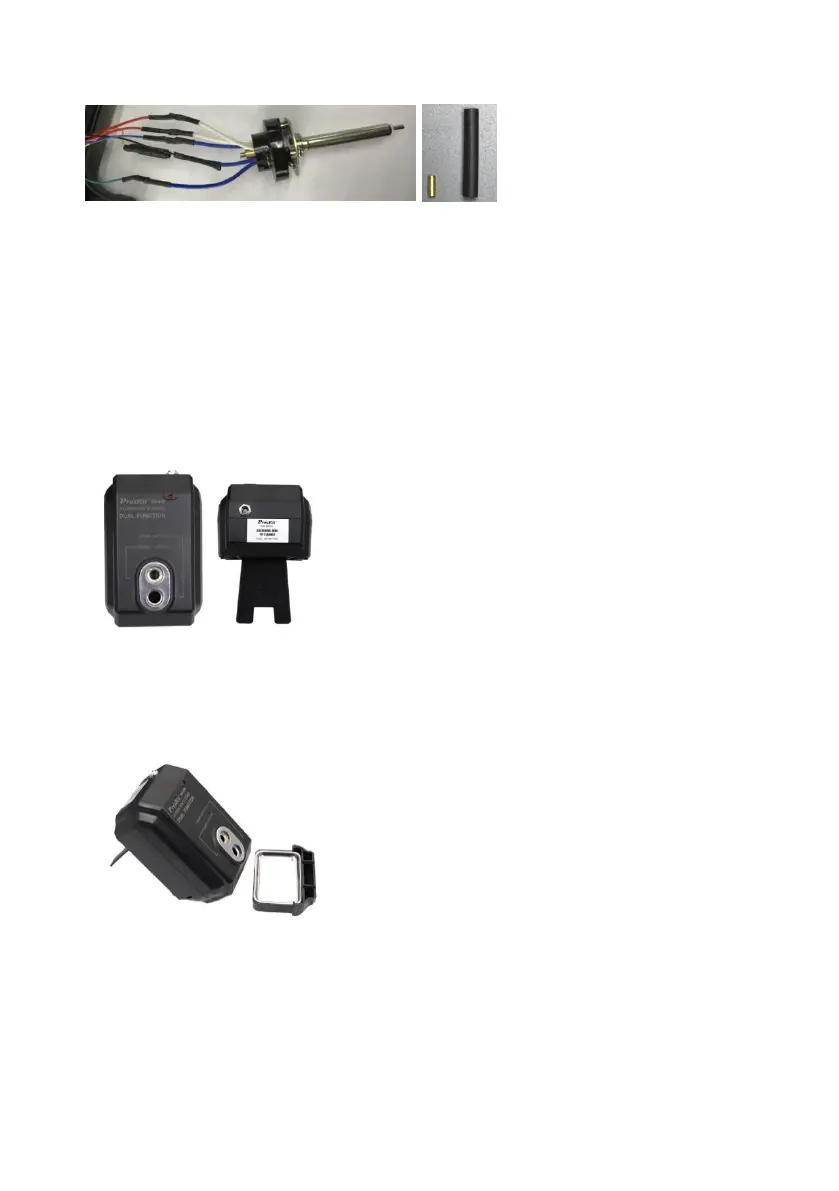

--Connect the long blue wire (earth) with the yellow wire in the handle
--Connect the two white wires (heater) with the two red wires separately, no need to distinguish positive
electrode and negative electrode.
-- Connect the two blue wires (sensor) with the black and the blue wires in the handle, no need to distinguish
positive electrode and negative electrode.
5. Measure the resistance values again and make sure the values are correct. Short-circuit the desoldering
gun nozzle and the metal shell of the plug, and the resistance value should be 0Ω.
6. Assemble the desoldering gun, during which be careful not to damage the wires or put any part into the
wrong position.
Notice: The wire colors are only for your reference. They may be changed without notice.
Any repair or maintenance work must be done by professionals.
9. Instructions of the Soldering iron tip cleaner
Powered by DC18V, the cleaner comes with dual cleaning function of solder removal and oxide removal.
With infrared sensor, it starts working automatically when the iron tip is inserted in and stops when the tip is
taken out. Its receptacle can easily collect all the solder waste.
Operation:
1. Connect the cleaner's input to the main station's output of DC18V.
2. Put it at an angle or horizontally. Insert the iron tip into the hole of solder removal or oxide removal and the
cleaner will start working automatically within 2 seconds. Take out the tip and the cleaner will stop working.
3. Repeat several times if necessary until the tip is completely clean.
4. Disconnect power plug when work finished or long period not in use.
5. Pull out the receptacle to get rid of the solder waste.
6. When the motor breaks down or the brushes can hardly clean tips, replace them with new brushes(model:
9SS-988-CL).
Maintenance
1. Never use it to clean anything other than soldering iron tips.
2. Do not drop or hit it, otherwise its motor inside may break down or its performance may be affected.
3. Make sure the output voltage is DC18V 0.5A when you connect it to an external power supply.
4. Do not clean it with any solvents such as alcohol.
10. Instructions of the Smoke absorber and LED light
The smoke absorber helps to absorb hazardous fumes and chemical gases. LED light is perfect for use in
dark area with a light shield on the LED to protect your eyes from dazzling light.
