Pro's Kit SS-989 - Assembly Instructions; Technical Specifications; Station Assembly; Nozzle Attachment

4

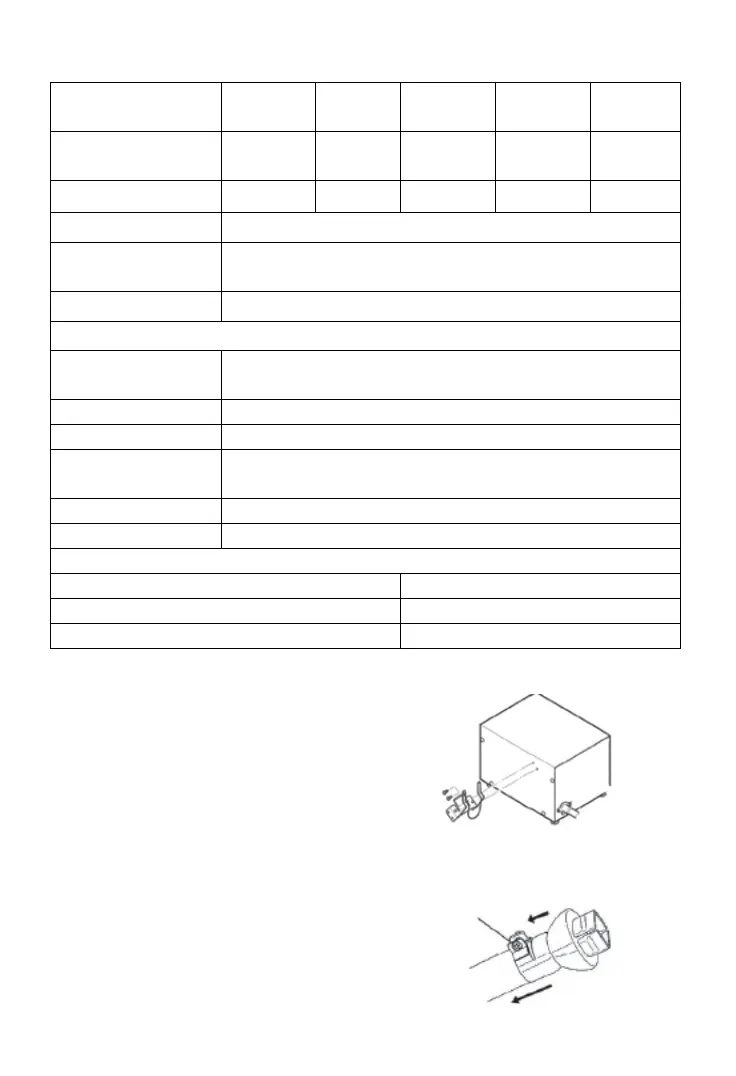

Specification:
Model
SS-989B
SS-989H
SS-989A SS-989A7 SS-989B4 SS-989C
Input voltage
AC220V
50Hz
AC110V
60Hz
AC127V
60Hz
AC240V
50Hz
AC240V
50Hz
Fuse 3A 250V 6A 250V 5A 250V
3A 250V
3A 250V
Total power 700W
Overall package
size (mm)
330 (L) * 275 (W) * 195 (H)
Weight 3.7 kg
SMD Rework Specifications
Power
consumption
640
Air pump Diaphragm type
Volume 24L/min (max)
Temperature of hot
air
100℃-450℃
Noise Noise < 45dB
Scale LED display
Soldering Iron Specifications
Power consumption of soldering iron 60W
Temperature range of soldering iron 200℃-480℃
Leakage voltage of soldering iron tip <0.5mV
Assembly
A. Station assembly
● Attach the Heat Gun holder
Remove the heat gun holder screw
from the side of the station; attach the
heat gun holder to the station (Fig. 1)
B. Attach the nozzle
● Loosen the nozzle mounting screw,
attach the nozzle on heat gun then screw it.
Show as the figure 2
Fig. 1
Fig. 2
