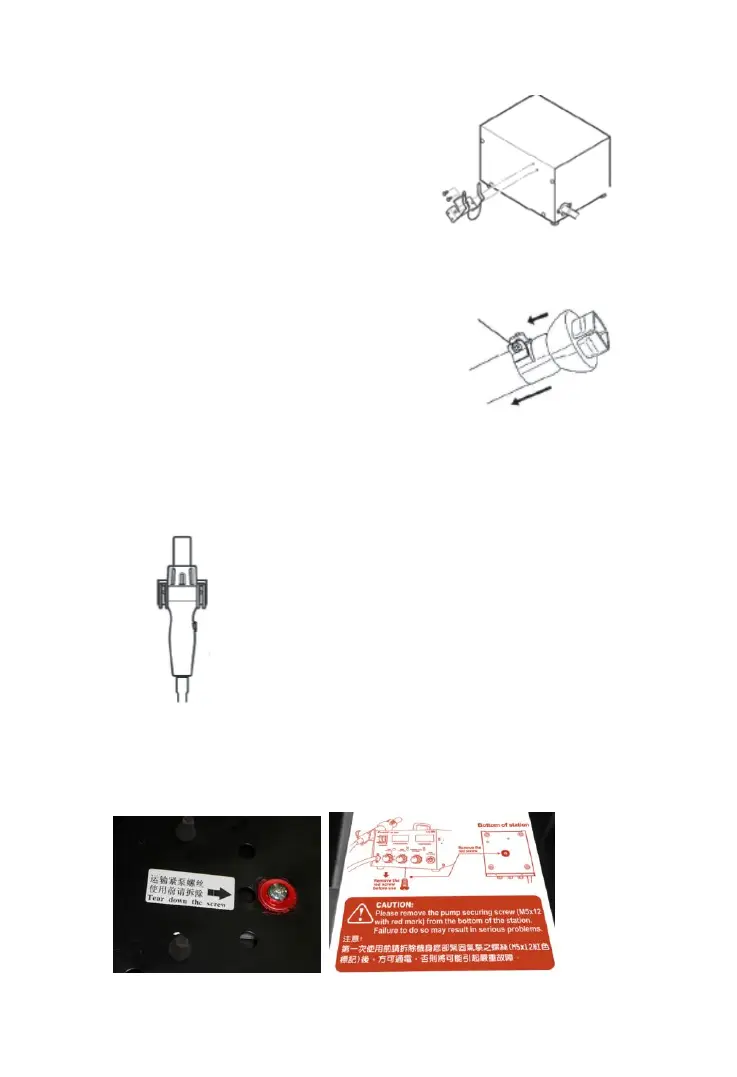

Assembly
A. Station assembly
● Attach the Heat Gun holder
Remove the heat gun holder screw
from the side of the station; attach the
heat gun holder to the station (Fig. 1)
B. Attach the nozzle
● Loosen the nozzle mounting screw,
attach the nozzle on heat gun then screw it.
Show as the figure 2
C. Electrical Connection and Power ON
●Place the heat gun on the holder.(Fig3)
Fig3
●Loosen the pump securing screw which on the bottom of control station.
(See below pictures)
●Insert the power plug into socket
Fig. 1
Fig. 2
