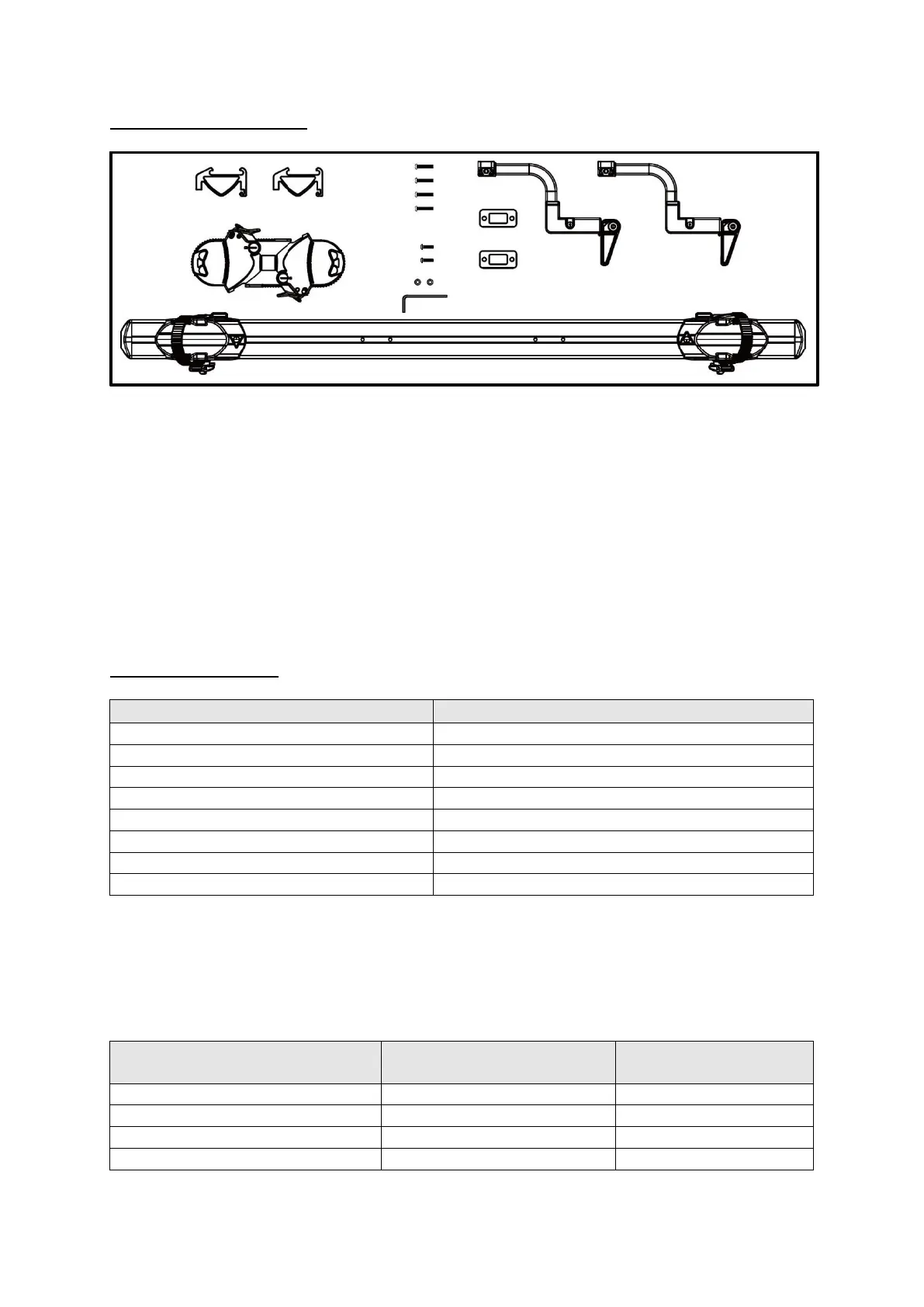

SCOPE OF DELIVERY
1 aluminum wheel holder including 2 wheel stoppers
2 steel mounting brackets
2 aluminum attachment adapters
2 plastic spacers
2 allen bolts M6x20
4 allen bolts M5x30
2 washers
1 lockable frame holder frame-frame
1 allen key
1 assembly instruction and safety regulations
Unpack all the components and check for the presence of all parts.
TECHNICAL DATA
Diamant TG +1
Itemnumber
91748 + 91749
Material
Steel/aluminium
No of bicycles
2 + 1 = 3
Own weight
17kg + 2,5kg = 19,5kg
Carrying capacity (max.)
60kg (3rd bike max. 15kg)
Wheel base bicycle (max.)
130cm(1-2) 120cm(3)
Bicycle tire width (max.)
6cm
Wheel holder distance
23cm(1-2) 14cm(2-3)
The bike carrier including 3
rd
bike adapter is suitable for the transport of three
bicycles at most. Please check the maximum permissible ball load. You can find it
on the identification plate of the tow bar of your car (for most cars this is 75kg).
The total weight of the bike carrier with the bicycles cannot exceed the maximum
permissible ball load of the tow bar.
Max. permissible ball load
Weight bike carrier
Max. carrying
capacity
50kg
19,5kg
30,5kg
60kg
19,5kg
40,5kg
75kg
19,5kg
55,5kg
90kg
19,5kg
Max. 60kg
