Proaction VC9340S-6 - Assembly Procedures; Assembly

4
5
IMPORTANT:
Please read the important safety
instructions before use.
NOTE:

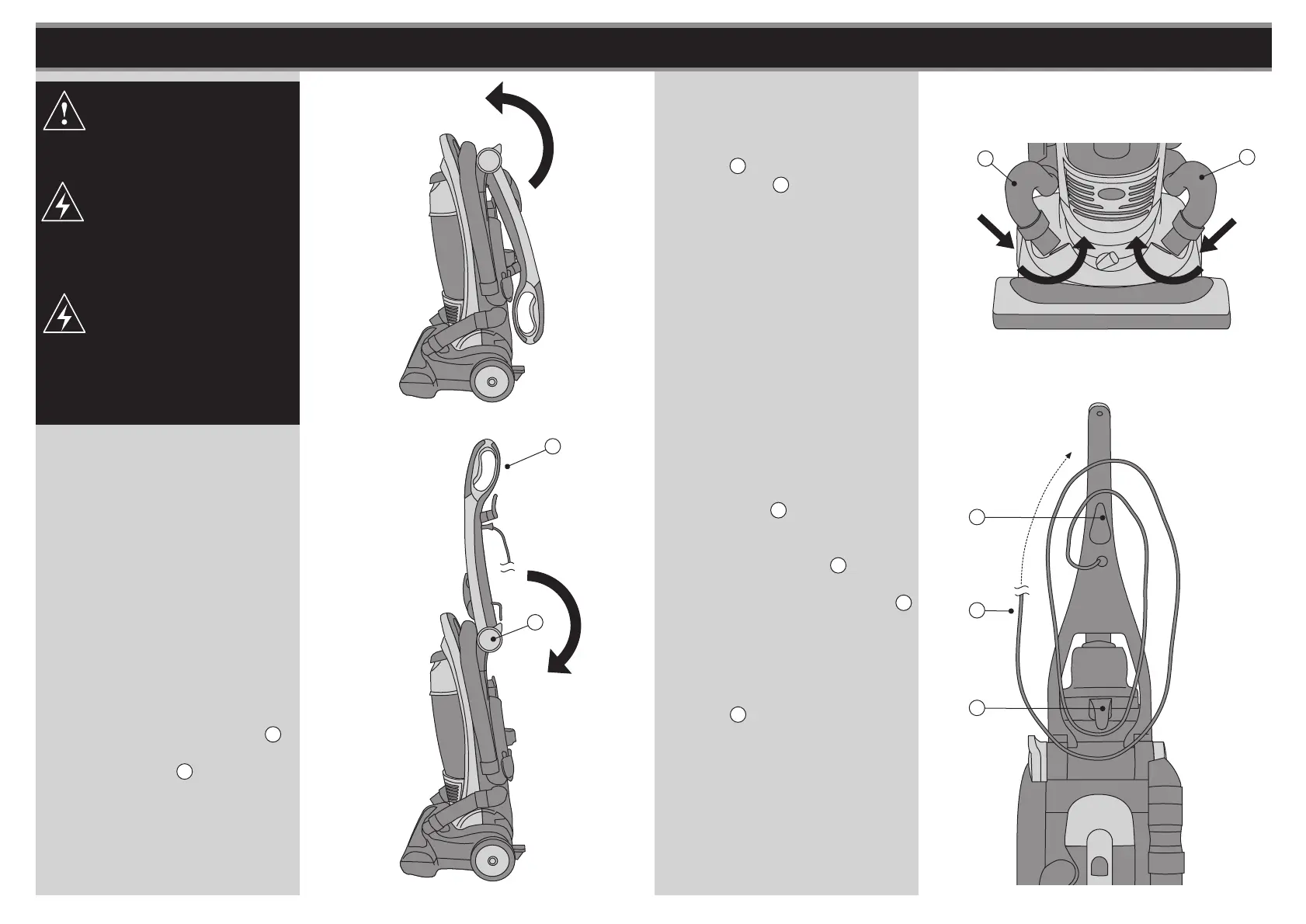

fig. 1
fig. 2
fig. 3
fig. 4
WARNING:
ASSEMBLY ASSEMBLY
Always remove the plug from
the mains power before fitting
or removing accessories.
Foldable Handle Release
1. Carefully unpack all components
and set aside packaging.
2. Lift the handle to an upright
position, the handle will lock
automatically.
See fig. 1.
3. To lower, hold Upper Handle A
in one hand and turn the Folding
Handle Release L.
See fig. 2.
A
L
Two Hose Ends To The Floor Head
1. Carefully insert the ends of Flexible
Hoses F into the holes on the
Power Head H. When the hose
end is fully inserted, rotate the left
hose anticlockwise and the right
hose clockwise by a small amount.
Ensure they are fixed securely
before turning the power on .
See fig. 3.
NOTE: Before use, both hose ends
must be correctly assembled
otherwise no suction force will
be transferred to the power head.
F
F
Cord Storage
1. Make sure that the quick release
Cord Holder K is in the upright
position.
2. Wrap the Power Cord R into place
by wrapping in a clockwise direction
around the Power Cord Holders K.
See fig. 4.
Quick Release Cord Storage
3. Rotate the upper Power Cord
Holder K 180˚ to unwrap the power
cord.
NOTE: Wrapping the cord with
excessive tension could damage
the cord.
R
K
K
WARNING: Ensure the unit is
switched off before plugging into
the mains.
Keep fingers away from the
Rolling Brush and ensure
children do not use this
appliance.
