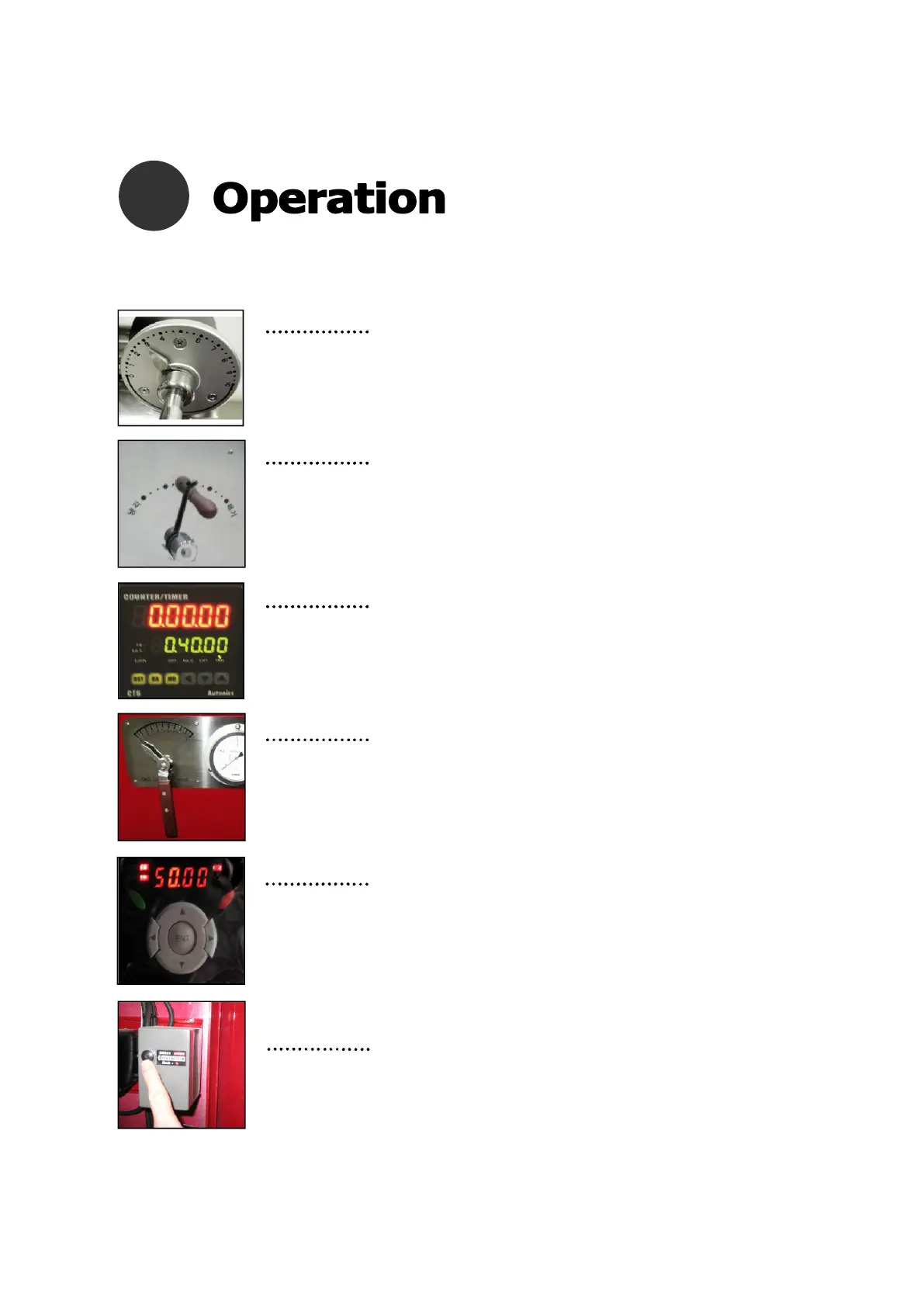

(2) Components
Controls the amount and speed of hot air coming
into the drum
“0” close < “10” open
1) Control the amount of heat inside the drum
2) Discharge smoke and chaff out of the drum during
roasting
3) Control the aroma during roasting
Equipment to select Exhaust(roasting) /cooling
mode
1) Right : Discharging mode when “10” is marked
(Cooling 0% Discharging 100%)
2) Left : Cooling mode when “0”is marked (Cooling 100%
Discharging 0%)
Equipment to program pre-heat time or roasting
time
The upper number shows the current time and the one
below shows set time
How to set: Press ◀ to move the cursor and ▲ ▼ to
increase / decrease numbers
Complete the setting by pressing MD button
Damper
Air Control Bar
Timer
Gas Knob
Equipment to control exhaust displacement
Press ‘ENT ‘ then move the digit you would like to change .
Press ◀ to move the number set ▲ ▼ to increase /
decrease
Complete your setting by pressing ENT button
* Warning, cooling power could be lacked when you set
below 40
To control heating power during roasting
Control the heat supply observing flame and gas
gauge
(control the heat observing Flame / Gas Gauge /
Temperature change)
Inverter
Ignition
Reset Button
to Reset ignition starter automatically
Press reset button when the red light is on due to full of air in the
gas pipe, which make the ignition not working
※ Repeat as needed to remove the air inside the gas supply pipe
