10

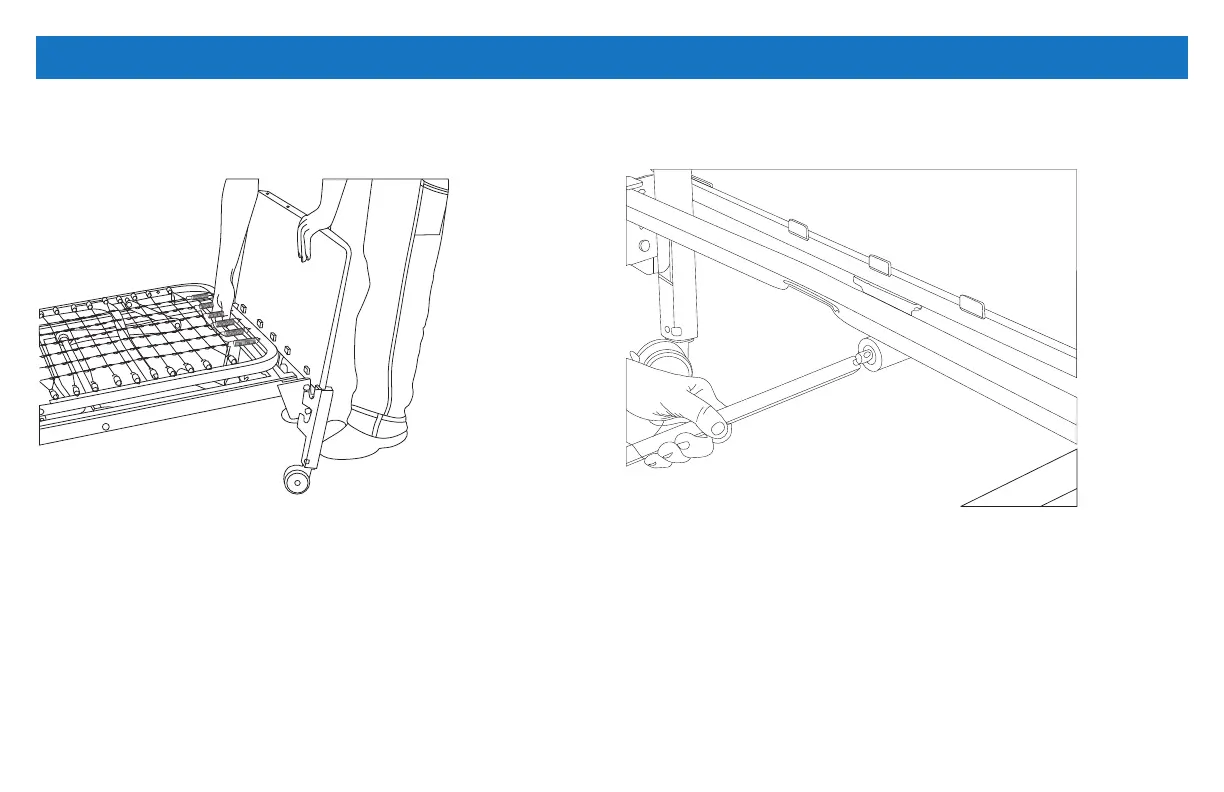

• Install the casters by inserting the caster stem into the leg
receptacle. ALWAYS install 1 locking and 1 non-locking caster
on each bed end. ALWAYS install locking casters diagonally
from each other.
• Attach the head board and foot boards.
• ALWAYS ensure that the 2 hooks on each side of the head and
foot boards are fully engaged and seated securely with the 2
locking rivets on each side of the bed frame.
• Install the head end of the drive shaft as shown.
ASSEMBLY INSTRUCTIONS CONT.
Figure 6
Figure 7
To Next Page
