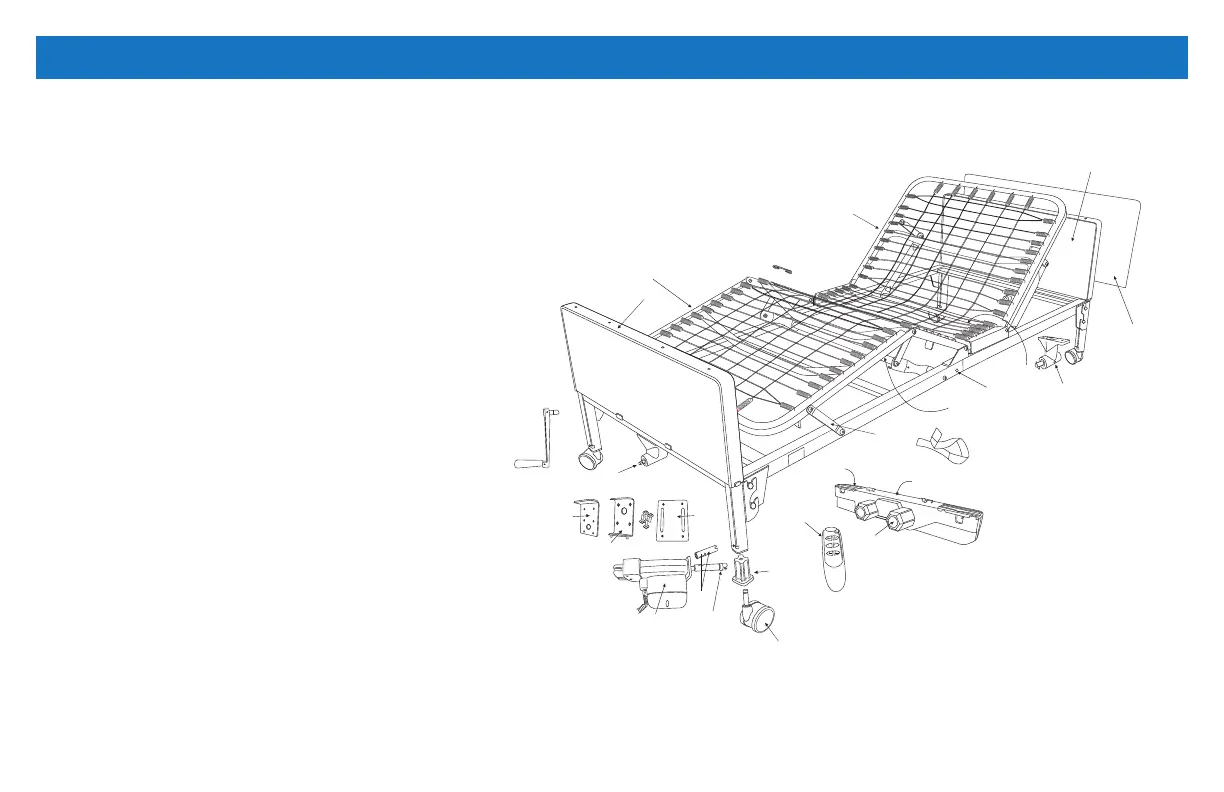

PROBASICS FULL ELECTRIC BED
20.
1.
5b.
7a.
7b.
8.
8a.
10.
9.
8b.
7c.
12.
16a
17.
4.
3.
6.
2.
1.
15.
5a.
13.
11.
14.
19.
18.
16.
1. Headboard
Footboard
2. Head spring
3. Foot spring
4. Headboard panel frame
5. Footboard panel frame
a. Headboard gear assembly
b. Footboard dear assembly
6. Sleep surface hook
7. Motor brackets (a, b, c)
8. Hi/Low motor gearbox
a. Motor shaft
b. Hi/Low Shaft Connector
9. Caster set (2 locking/2 non-locking)
10. Caster receptacle
11. Frame linkage
12. Hand control
13. Head actuator bar
14. Foot actuator bar
15. Footboard panel
Headboard panel
16. Motor
a. Motor mount
17. Motor Cap
18. Motor Strap
19. Bed locking pin
20. Hand crank
