NOTE: Spring fabric not shown for clarity

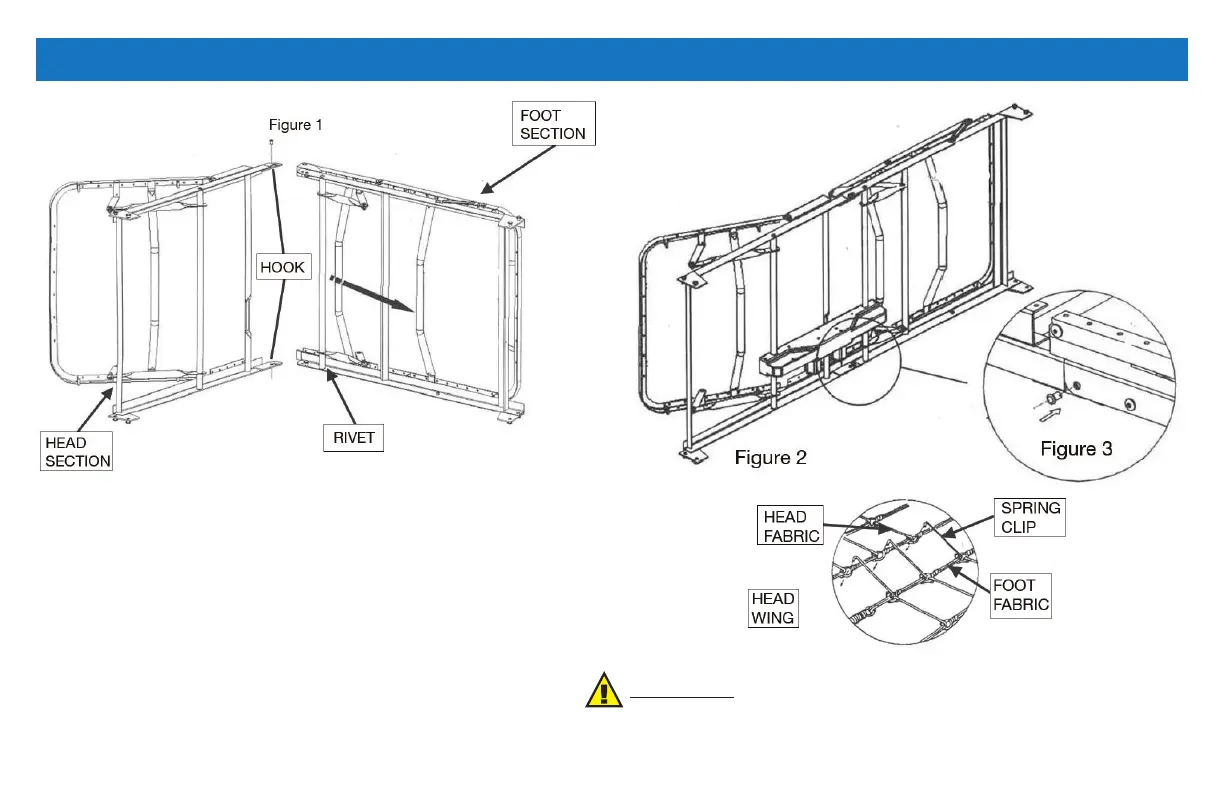

• Lay the head and foot section on their sides approximately
90º to each other (See Figure 1).
• Slide the sections together until the hook on the head section
catches the rivet on the foot section.
• Straighten sections and position as shown in gure 2.
• Position head wing as shown.
• With the two sections level, install a frame lock pin into each
side of the frame as shown in gure 3.
• Be sure to properly install frame lock pins before use
WARNINGS: Lock pins must be installed to ensure safe operation/use
• Attach fabric halves together using spring clips, which are
attached to the foot fabric.
FRAME ASSEMBLY INSTRUCTIONS
