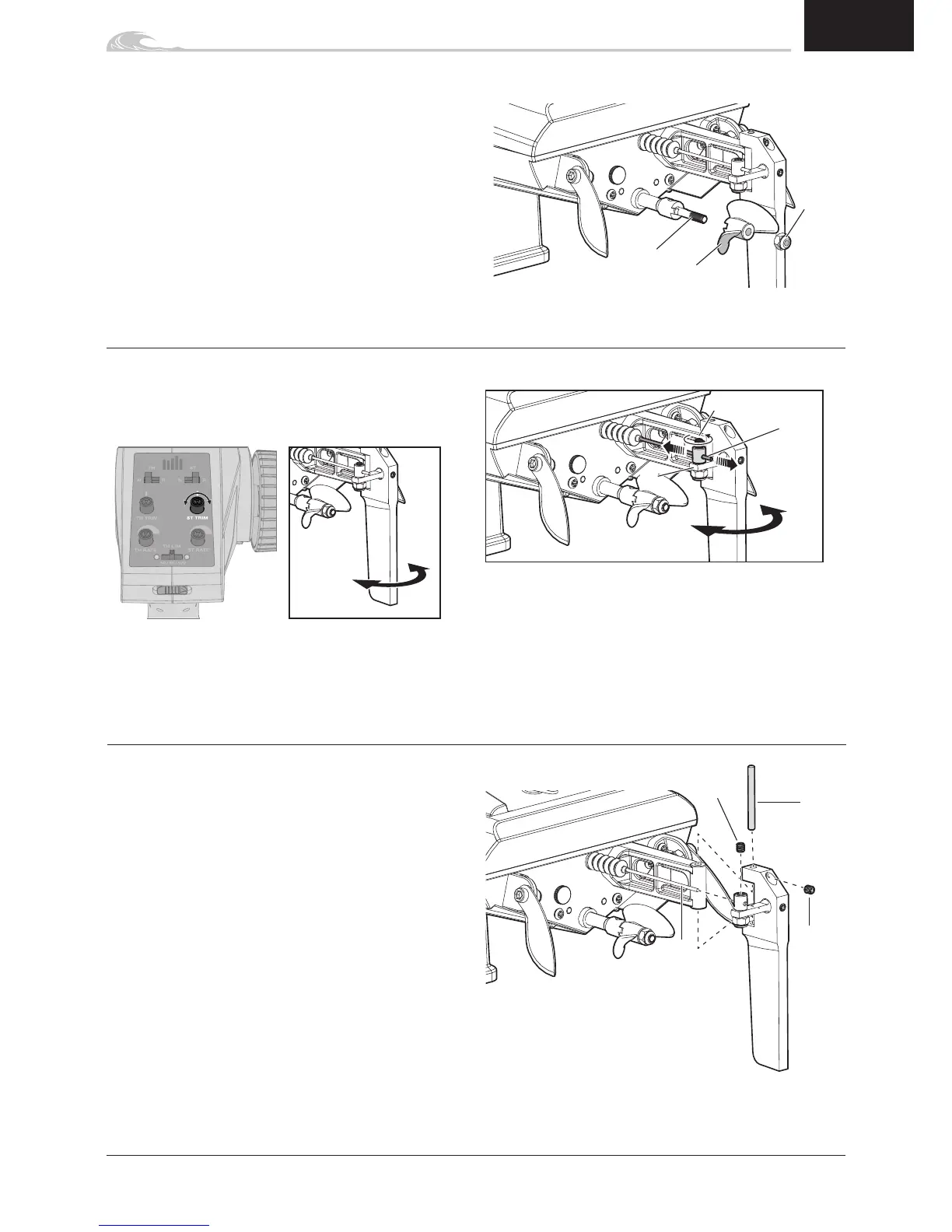

Propeller Service
1. Use an 5.5mm nut driver to loosen the nut (A) from
the driveshaft (B).
1. Remove the nut and propeller (C) from the driveshaft.
2. Assemble in reverse order. Correctly align the
propeller with the drive dog on the driveshaft.
A
B
C
A
D
C
B
Rudder Trim
If the boat does not go straight, adjust the ST TRIM dial
on the transmitter.
If you are using all the steering trim on your transmitter
to make the boat drive straight, return the trim to neutral
and mechanically center the rudder. To do this, loosen
the hex nut (A) from the rudder horn (B), then adjust the
linkage (C) until the rudder is properly centered.
Rudder Service
1. Loosen the setscrew (A) on the rudder arm using
a 1.5mm hex wrench, then remove the linkage (B)
from the rudder arm.
2. Loosen the setscrew (C) from the rudder pin (D) using
a 1.5mm hex wrench.
3. Turn over the boat and lightly tap the rudder to
remove the pin.
4. Assemble in reverse order.
A
C
B
