12
2
1
3
Pin 1: Digital ground
Pin 2: DAS (Digital Audio Standard) input +
Pin 3: DAS input –
Specifications
■ Frequency response: 10 Hz - 20 kHz +0dB, -0.2dB
■ Total harmonic distortion (THD): 0.004% @ 1 kHz, 0dB
■ Dynamic range: 104dB (or better)
■ Signal-to-noise ratio: 107dB
■ Channel separation: 120dB
■ Intermodulation distortion (SMPTE IMD): 0.008%
■ Digital-to-analog conversion: Two precision 20-bit DACs
■ Filtering: 8x oversampling digital filter
Analog filter, linear phase to 40 kHz
■ Low-level linearity: Deviation unmeasurable to below -70dB,
approximately +1.0dB below -90dB
(undithered, ref 0dB @ 1kHz)
■ Output impedance: <1Ω
■ Mains voltage: 120 V U.S. service
■ Mains frequency: 50/60 Hz
■ Power consumption: 25W @ 120V, 60 Hz
■ Shipping weight: 22 lbs/9.98 kg
■ Overall dimensions
■ Width: 8.4 in/214 mm
■ Height: 3.4 in/87 mm
■ Depth: 15.625 in/397 mm
Madrigal Audio Laboratories, Inc., reserves the right to change this
product’s features and specifications without notice.
Pin 1: Chassis ground
Pin 2: Signal + (non-inverted)
Pin 3: Signal – (inverted)

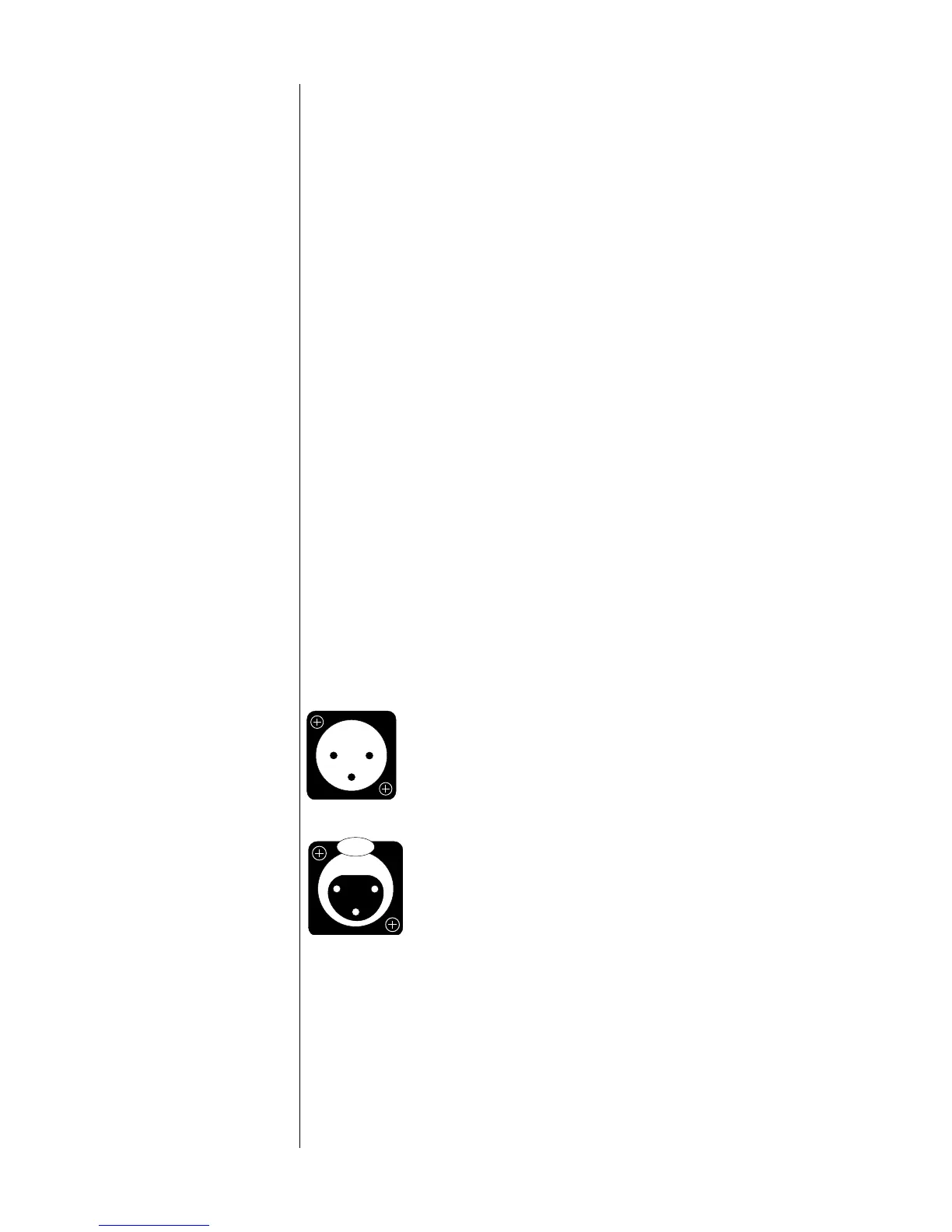

Pin assignments, female
XLR digital input
PUSH
21
3
Pin assignments, male XLR
balanced analog output
