© 2014 Proceq SA 13
6. Accessories

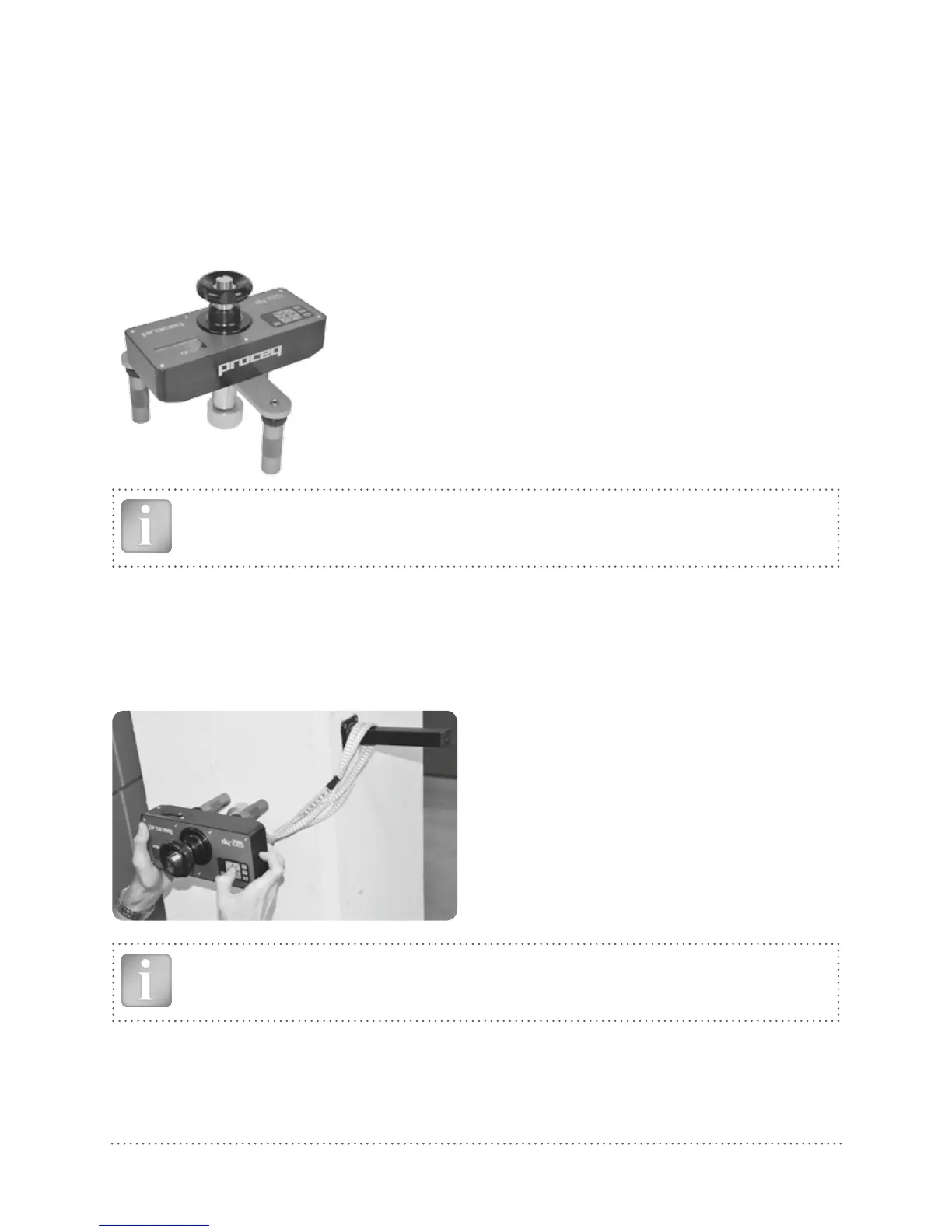

6.1 Working with large test discs
The standard Proceq DY-2 configuration can be used with test discs up to 50mm diameter or 50 x
50mm square.
Adapter plate for large test discs
The adapter plate (Part No. 346 10 530) accommodates all test discs in the Proceq range.
Note: When working with the adapter plate the maximum load must not exceed 16kN.
(See Chapter 4 - “Set the Load Parameters”).
6.2 Working on vertical surfaces or overhead
When working on vertical surfaces or overhead ensure that the test disc is firmly glued to the sur-
face before coupling the Proceq DY-2. When the test is completed the instrument will fall unless
properly supported either by hand or by a mechanical fixing.
An optional fixing kit is available for this purpose (Part No. 346 10 550).
Warning! The operator is responsible for making sure that the instrument cannot fall and
cause damage or injury.
