© 2007 Proceq SA Product Description 5
2.3.3 Resolution

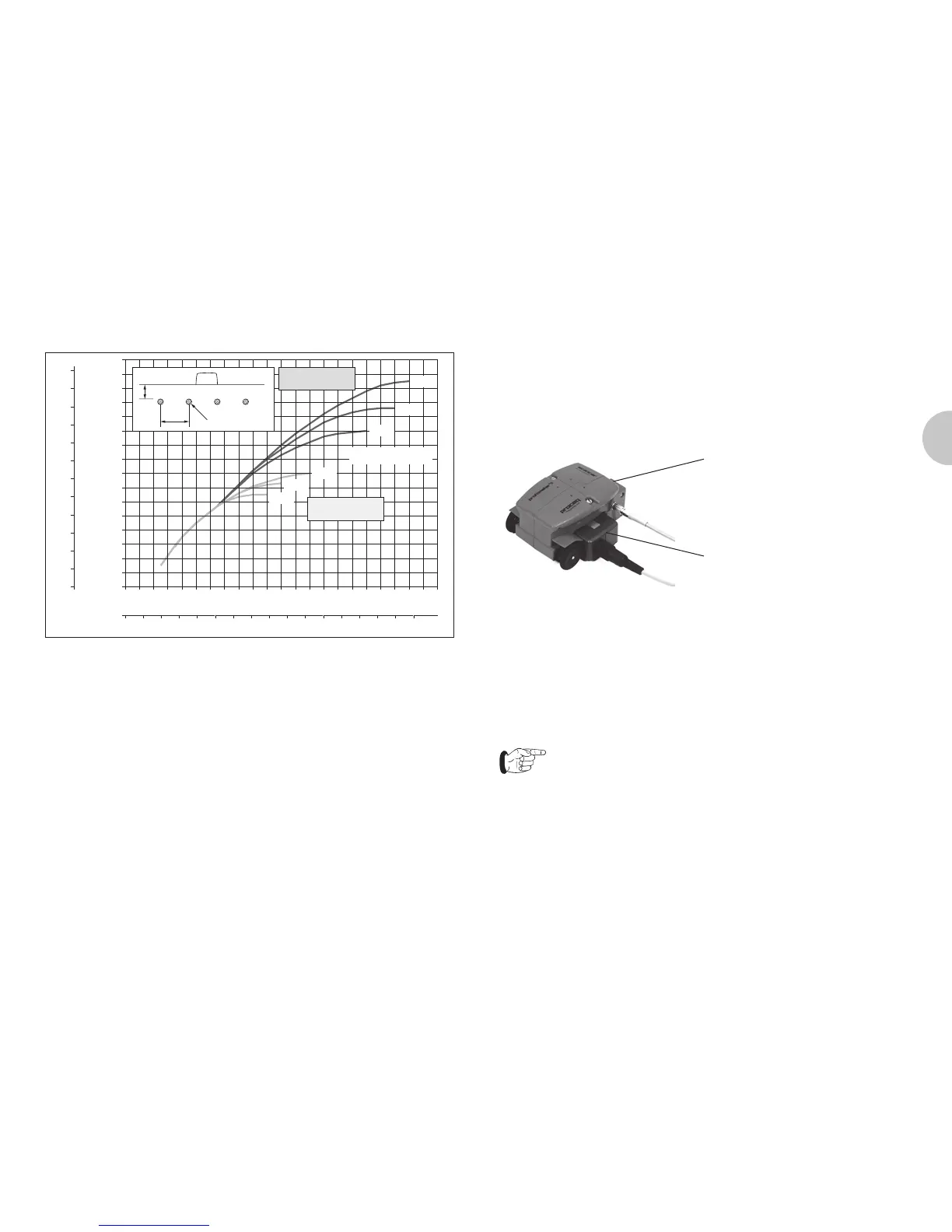

Fig. 2.4 Resolution
On concrete elements, measurements are often influen-
ced by neighboring bars. For parallel bars in the same
layer, the diagram in Fig. 2.4 shows the smallest bar
spacings a at which rebars are still identifiable individu-
ally in relation to concrete cover s. For intersection points
of the bar spacing a and concrete cover s above the cor-
responding curve the current value indicates the approxi-
mate depth of the reinforcement level. For possibility for
correction, see «Corrections», page 7.
Example of bars in a position which can still be located:
Bar diameter d = 16 mm, concrete cover s = 55 mm and
smallest bar spacing a = 70 mm.
2.4 ScanCar
Fig. 2.5 ScanCar with integrated universal probe
For the SCANLOG model, the ScanCar is required to
perform the «CyberScan» and «Measure with Grid»
functions. For model S, it can be used as a carriage
without any other functions.
If the path measuring cable is connected, the
air gap of 4 mm between the probe and the
concrete surface is automatically corrected
when the concrete cover is displayed.
0 20
00
1
2
3
4
5
6
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
40 60 80 100 120 140 160 180 200
80 1 2
Bar diameter d
small
measuring range
large
measuring range
Ø 26
Ø 16
Ø 10
Ø 26
Ø 16
Ø 10
3 4 5 6 7
Bar spacing a
Concrete Cover s
[mm][inch]
[mm]
[inch]
Bar
diameter d
a
s
ScanCar, carriage with
integrated path measuring
device
Integrated universal probe
becomes mobile probe
