Proceq Profometer 5+ User Manual

English
© 2007 Proceq SA Measuring Process 15
x meter scale
Cursor
1st layer
2nd layer
Direction of travel of the
probe
Concrete covers of the 1st and 2nd layer
Preselected bar diameter
y meter scale

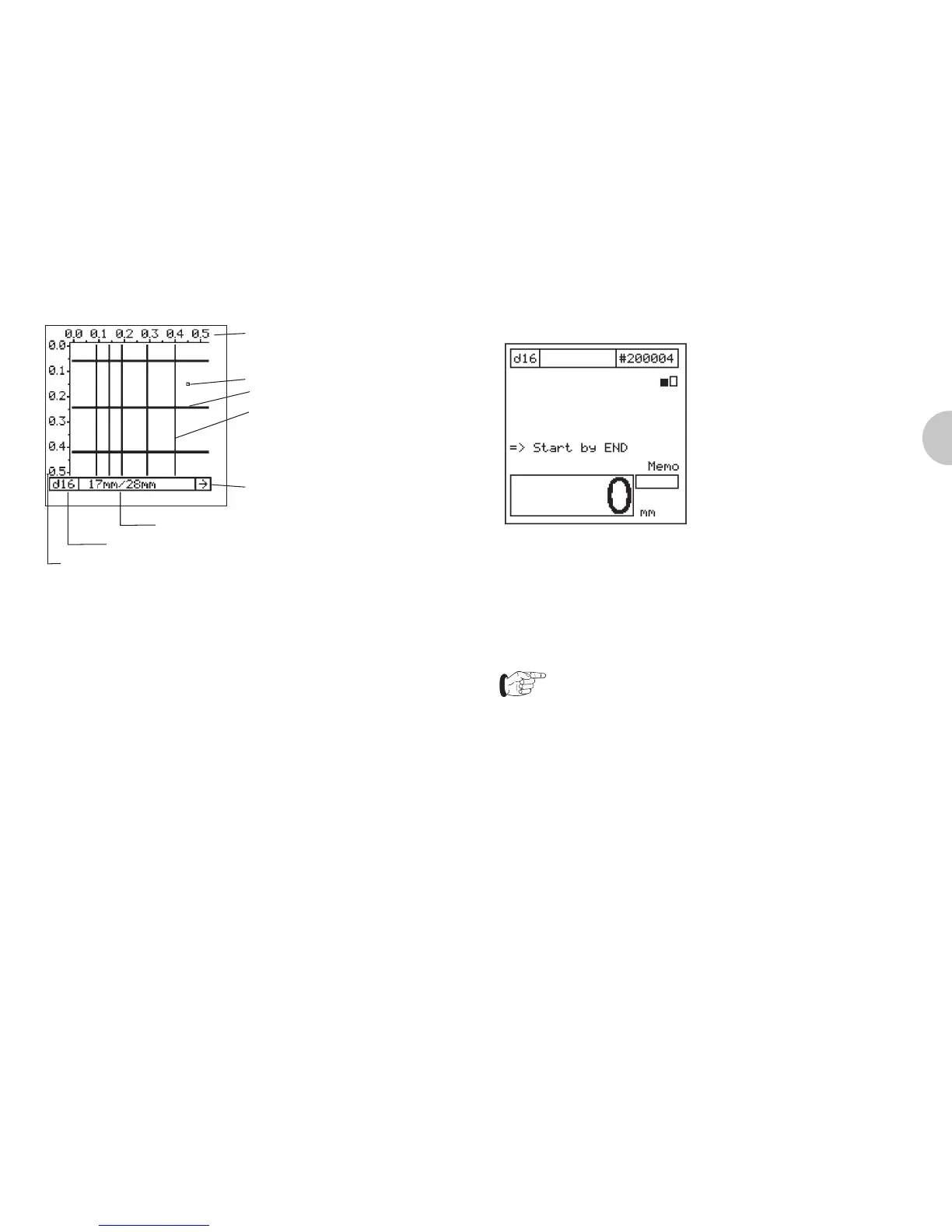

Fig. 5.6 Example of a measured object
Settings
See also «Settings», page 6.
• Enter the bar diameter of the first layer.
• Enter the object number.
• Enter the bar spacing under the menu option «Neighb.
Bar Corr.» if the correction is required. The «2-Layer-
correction» cannot be used by this function.
• Enter the size of the measuring area («MENU» →
«Basic setups» → «Scan Area»).
• Select the measuring function «Scanning Bars».
• Press the START key.
The following measuring display appears:
Fig. 5.7 Measuring display «CyberScan»
• Locate a rebar of the first layer in the measuring area
and mark it precisely. Then mark the left or top limit of
the measuring area parallel to the previously marked
bar on the concrete element.
Direction of travel:
The front of the mobile probe is where the
single wheel is.
