CONNECTION OF THE CIRCULATION TANK

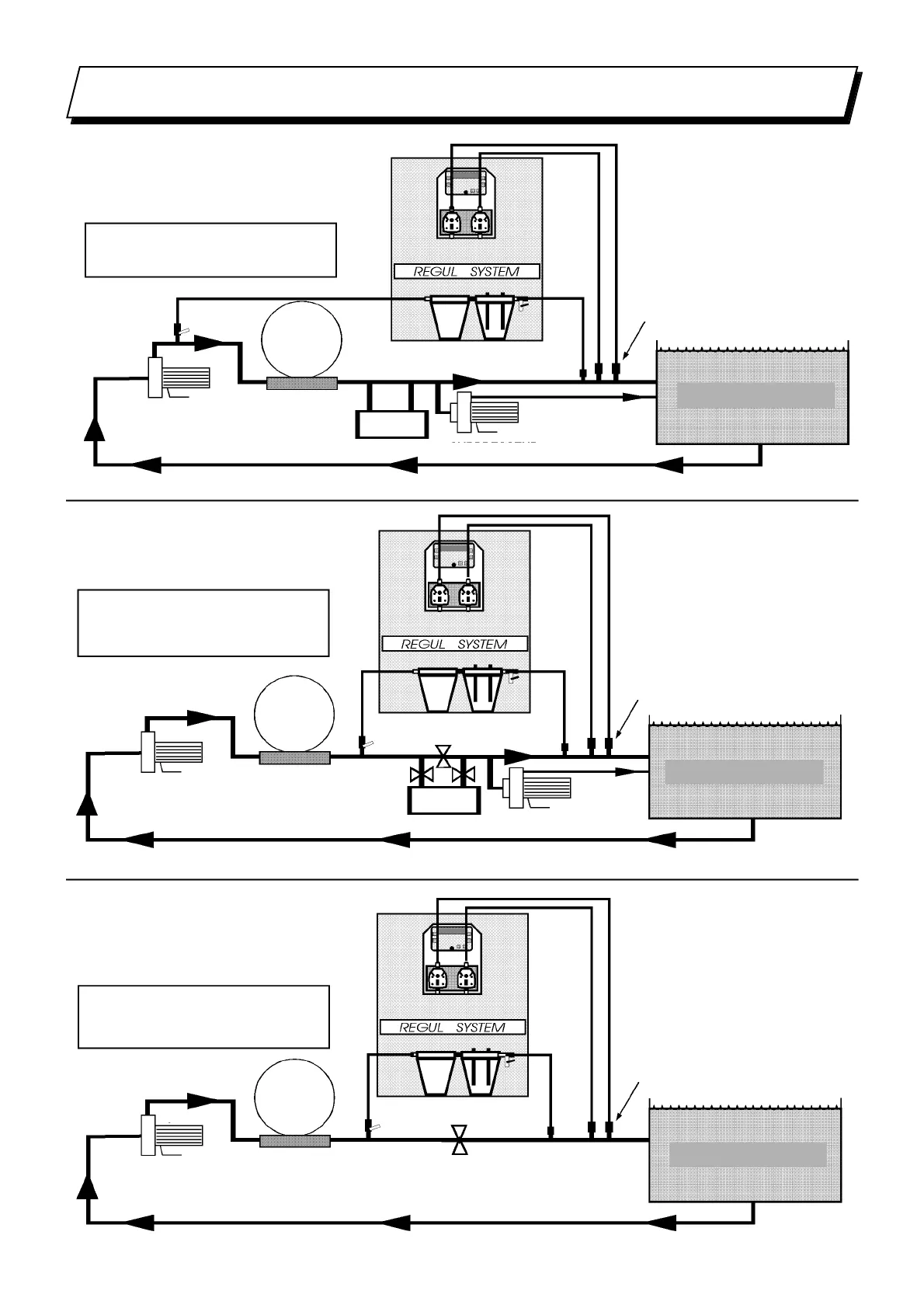

Fig. 1 - Between the exits of the
pump and the filter
PUMP
FILTER
HEATING
BOOSTER PUMP
INJECTIONS
POOL
POOL
POOL
POOL
POOL
POOL
FILTRATION CIRCUIT
Fig. 2 - In the fitlter exit, before and
after heating or after booster pump
PUMP
FILTER
HEATING
BOOSTER PUMP
INJECTIONS
FILTRATION CIRCUIT
Fig. 3 - In the filter exit. The valve must
be very slightly closed to force derivation
PUMP
FILTER
VALVE
INJECTIONS
FILTRATION CIRCUIT
