Procopi RTM Classic Top T-610-A User Manual

2011/01 - Indice de révision : B - Code : 0026730
12/44

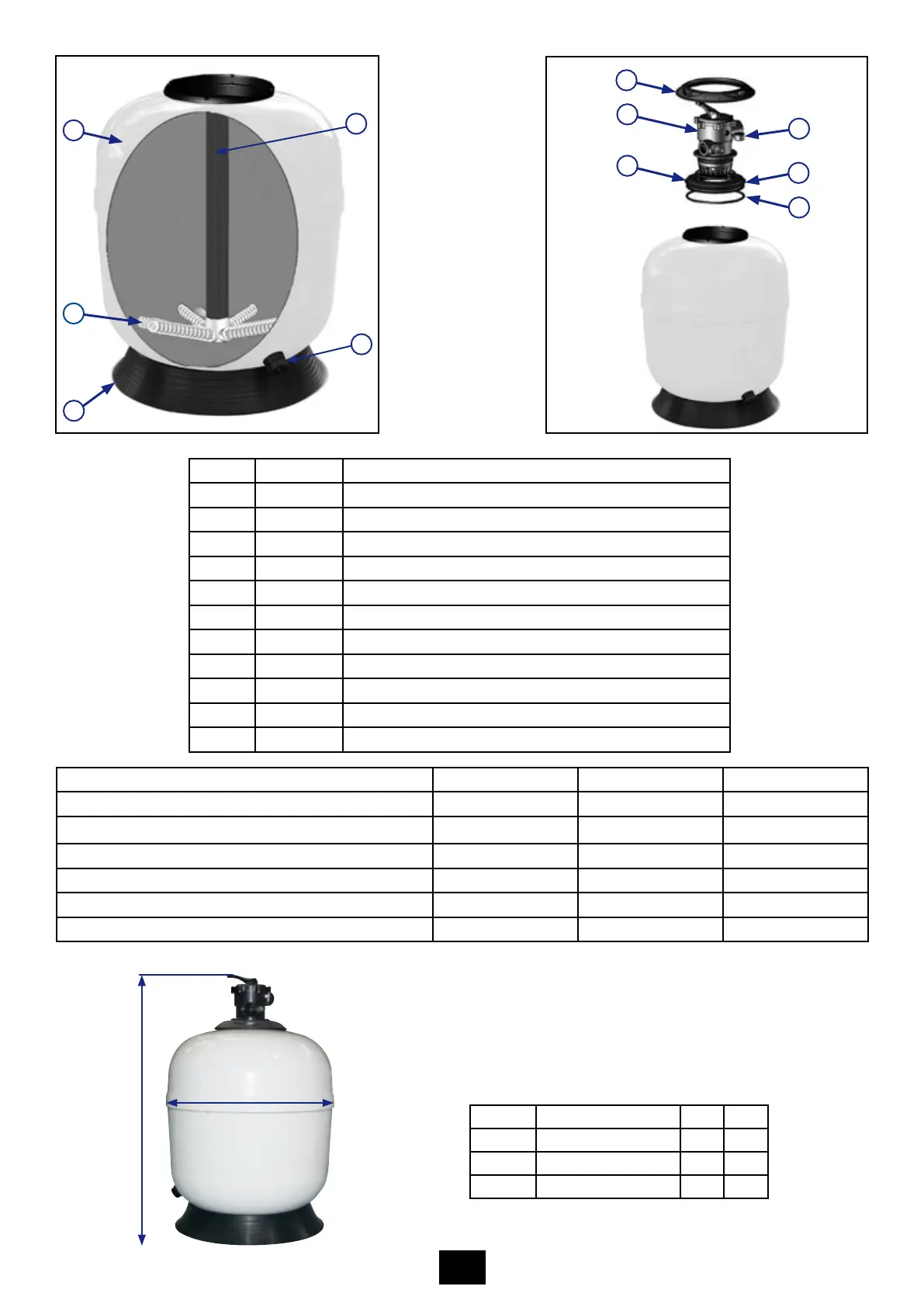

FILTER VALVE A B
Ø 610 1" 1/2 1000 612
Ø 760 1" 1/2 1150 762
Ø 920 2" 1350 922
FILTER Ø 610 Ø 760 Ø 920
Filter medium (kg) 125 (including 25 kgs of gravel) 250 (including 50 kgs of gravel) 350 (including 75 kgs of gravel)
Filtration surface area (m
2
) 0.28 0.44 0,65
Operating pressure (bar) 1.6 1.6 1,6
Max pressure (bars) 2.5 2.5 2,5
Filtration rate according to NF P 90-30 2 (m
3
/h/m
2
) 50 50 50
Max flow rate (m
3
/h) 14 22 32
Index Number Item designation
1 1 Tank
2 6 Bar laterals
3 1 Base
4 1 Collector pipe
5 1 Drain
6 1 Lid holding ring (comes with the valve)
7 1 TOP 1" 1/2 valve (packed seperately)
8 1 TOP 1" 1/2 lid (comes with the valve)
9 1 Pressure gauge (comes with the valve)
10 1 O-ring 458.12 x 5.33 mm (comes with the valve)
11 1 Lid o-ring 230 x 8 mm (comes with the valve)
4
5
3
1
2
6
7
8
10
11
9
A
B
