27

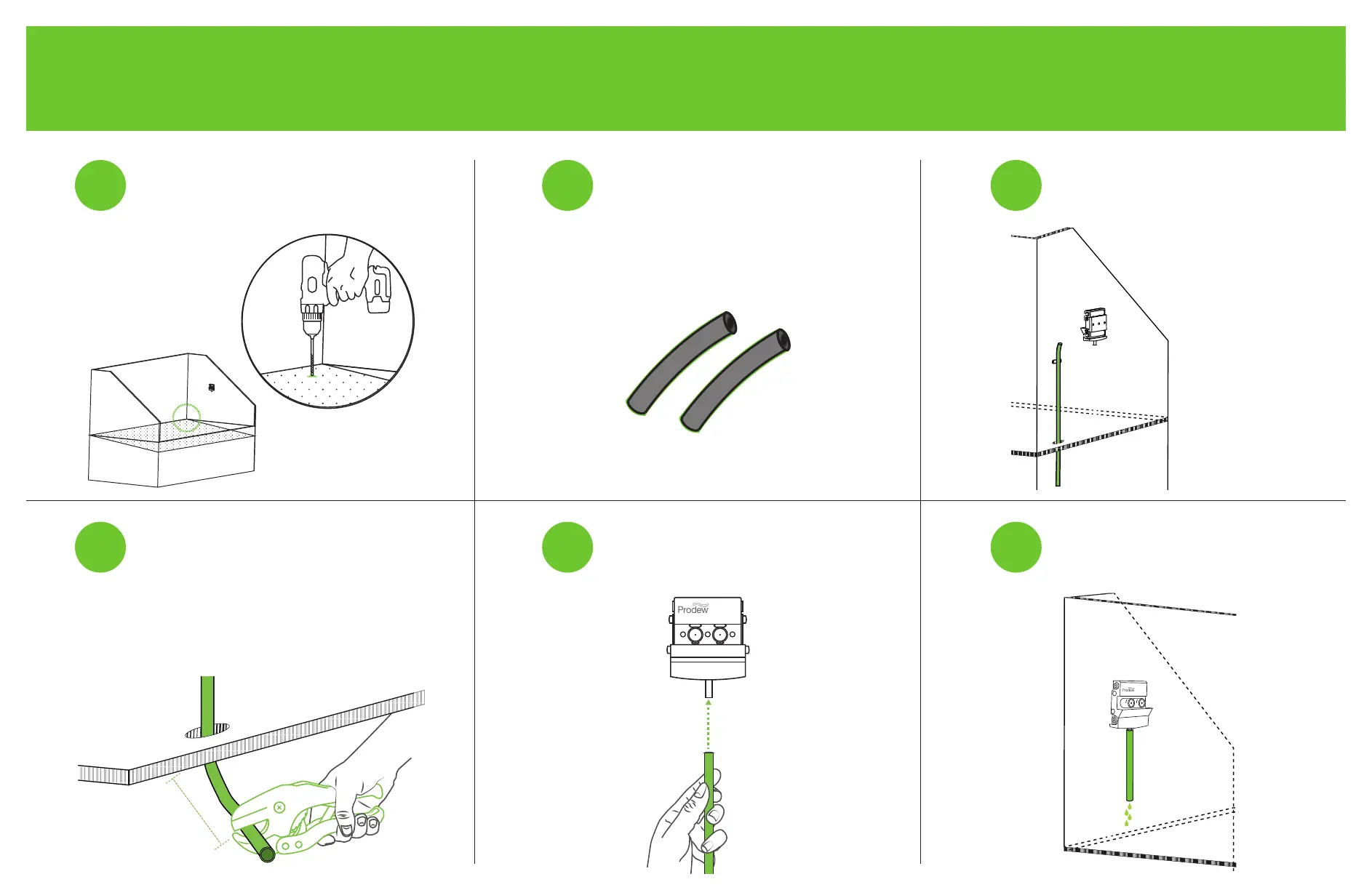

System Installation
12
Locate the two sections of 1/2in
black tubing. These will be used
to protect the air and water lines.
15
Attach the 8mm tubing to the drip
pan port on the bottom of the
FogMist™ Block.
13
Run one section of 1/2in black
tubing from the blocks to the
5/8in hole.*
16
Run the drain line down the side of the case,
ending a couple inches above the pan.
Be sure line won’t drain onto product.
* Find the best,
least visible way
to route the tubing
from the Blocks
to the bottom of
the case.
11
Drill a 5/8in hole in the drain pan on each
side of the case at the highest point on
the employee side.
14
The 1/2in tubing should be 2-3in into
the bottom area of the case.
Cut tubing to length.
Repeat steps 13-14 for the 5/8in hole in
the other side of the case.
2-3in
To Next Page
