System Installation
23

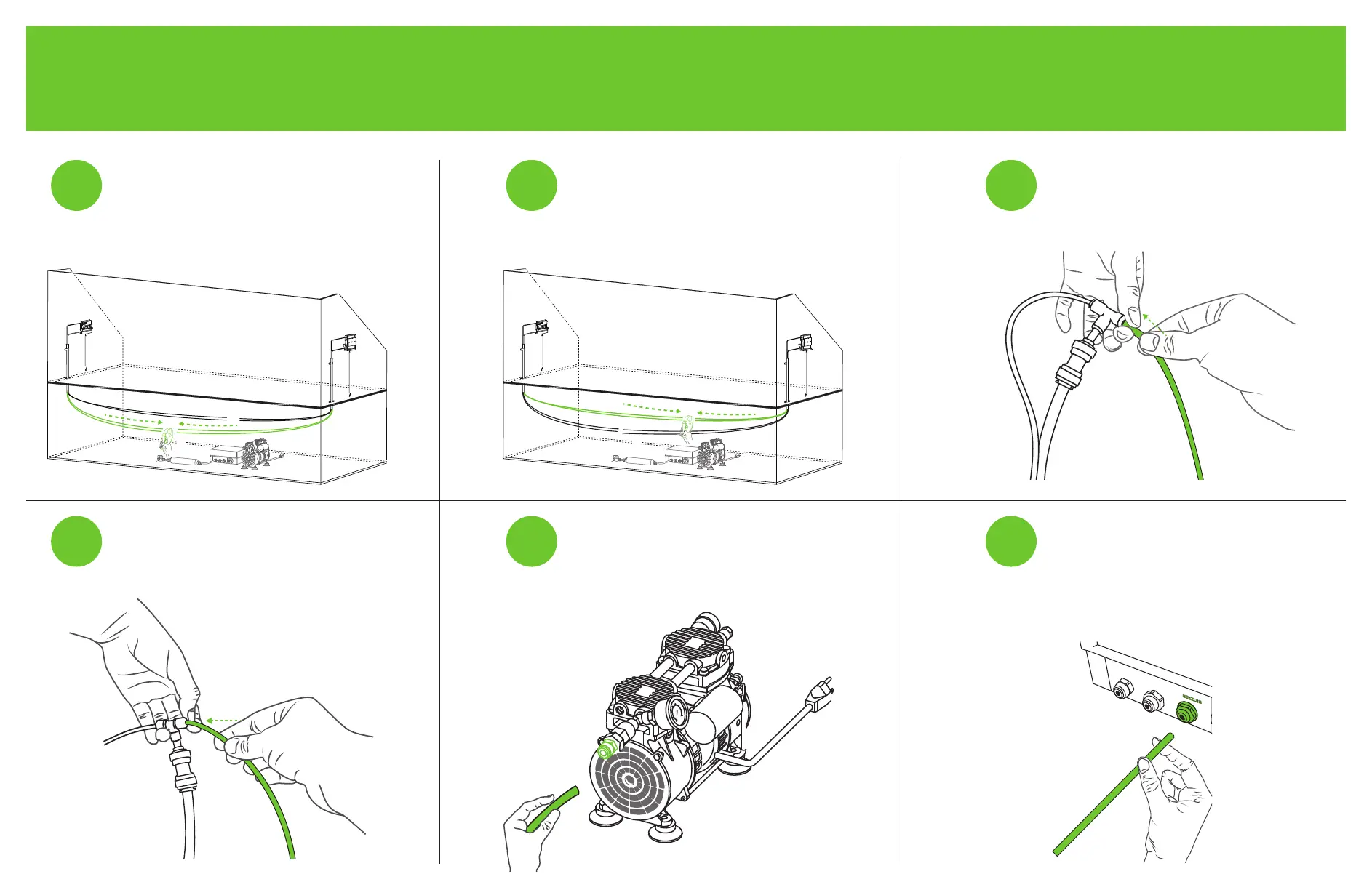

Pull the two 5/32in water lines together
at the solenoid box from each end of
the case.
Cut to length.
26
Reconnect both 5/32in black air lines
to the air tee that you disconnected in
step 19.
25
Reconnect both 5/32in clear
water lines to the air tee that
you disconnected in step 18.
28
Connect the 3/8in water line coming
out of the tee to the port labeled
‘NOZZLES’ on the solenoid box.
Cut to length.
24
Pull the two 5/32in air lines
together at the air compressor
from each end of the case.
Cut to length.
27
Connect the 3/8in black air line coming
out of the air tee to the air compressor.
Use a minimum of 3ft of tubing.
To Next Page
