right channels is independent. This mode is especially useful when L and R
signals on the headphones are not related (binaural monitoring).

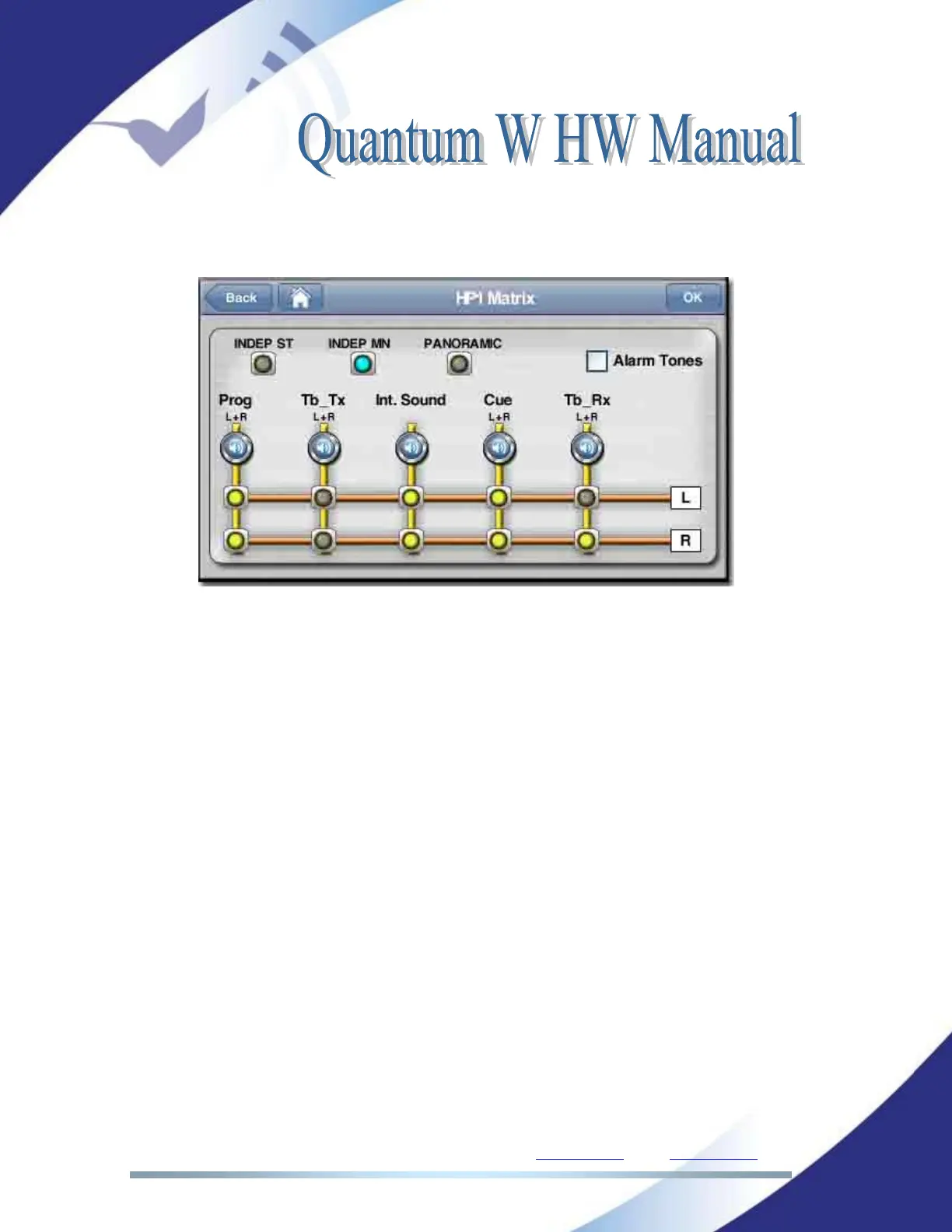

Headphone panoramic control (Tx /Rx balance)
This control is preferred for users uncomfortable with binaural monitoring that
prefer to hear the same audio signal on the left and right ears.
This mode is useful if the user wishes to balance the relative level between
transmission and reception signals. Firstly, the user should configure what
signals take part on the transmission group and what signals take part on the
reception. To do that, just click on the cross points at the matrix and select what
signals will be added to TX and RX parts.
