Make the speaker connections using speaker wire that is at least 14 gauge or
heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential for
strong bass response. When connecting, make sure that positive (+) from the amplifier is
connected to the positive (+) of the speaker, and the same for negative (-).

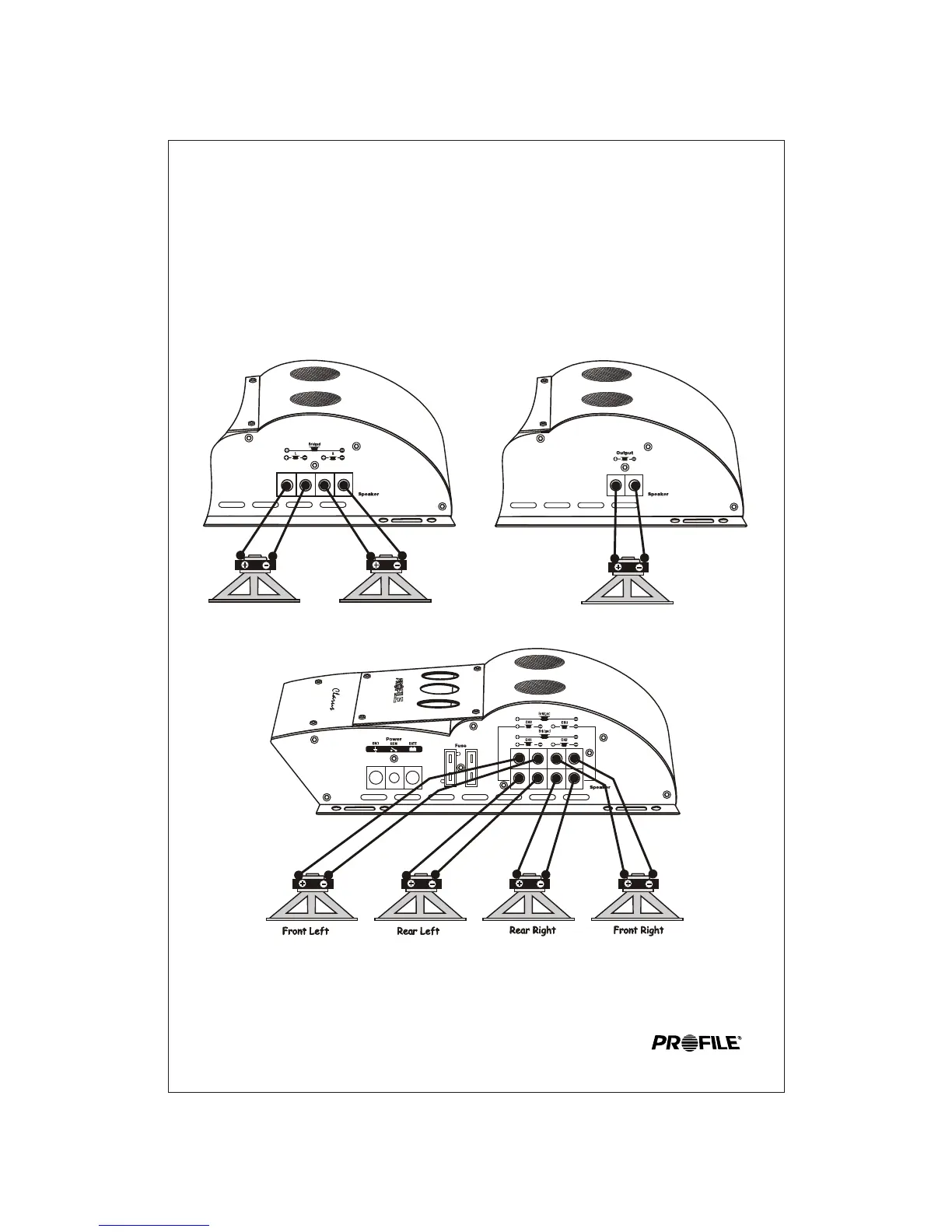

SPEAKER CONNECTIONS
10
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
TWO CHANNEL
SPEAKER CONNECTIONS
CL600M SPEAKER CONNECTIONS
FOUR CHANNEL SPEAKER CONNECTIONS
4 Ohm Speaker
(2 Ohm Minimum)
4 Ohm Speaker
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
CL600M ONLY
