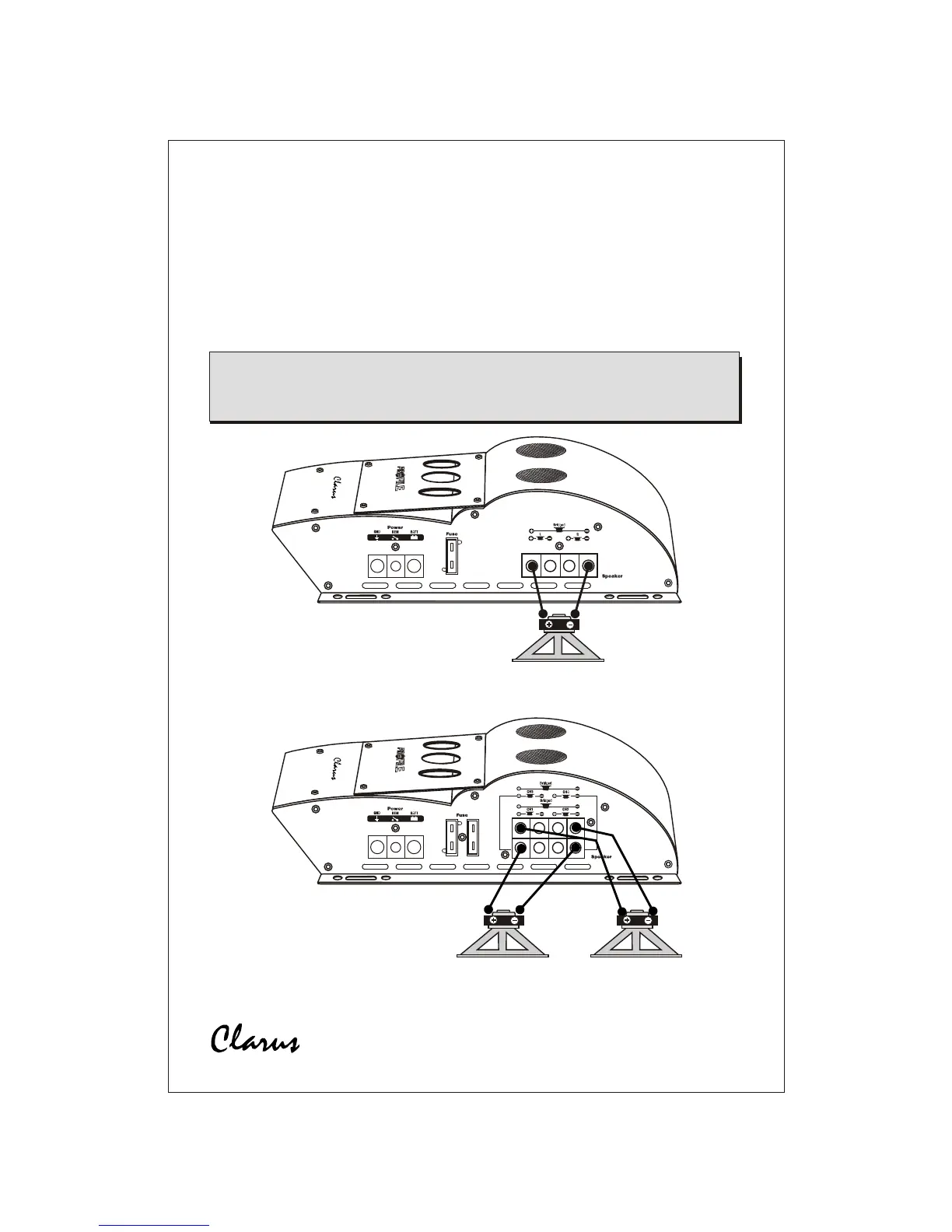

TWO CHANNEL BRIDGED SPEAKER CONNECTIONS
FOUR CHANNEL BRIDGED SPEAKER CONNECTIONS
SPEAKER CONNECTIONS (BRIDGED)
The Clarus amplifiers are capable of being bridged in a mono configuration. This feature allows
you the flexibility of using the amplifier to drive a ** subwoofer or a center channel. In this
configuration the amplifier sums the right and left channel to deliver one channel (mono)
output.
Please note: in order for the amplifier to sum right and left signal information, both right and
left RCA connections must be made.
**CAUTION! In the bridged mode, the amplifier must see a 4 Ohm load or higher. Any
lower than 4 Ohms will cause the amplifier to overheat and possibly cause permanent
damage to the amplifier!
