CAUTION! In Tri- mode operation, the amplifier must see a 2 Ohm load or higher for the
stereo satellites and no lower than 4 Ohms for the subwoofer(s). Any lower than the
above mentioned impedance will cause the amplifier to overheat and possibly cause
permanent damage to the amplifier.

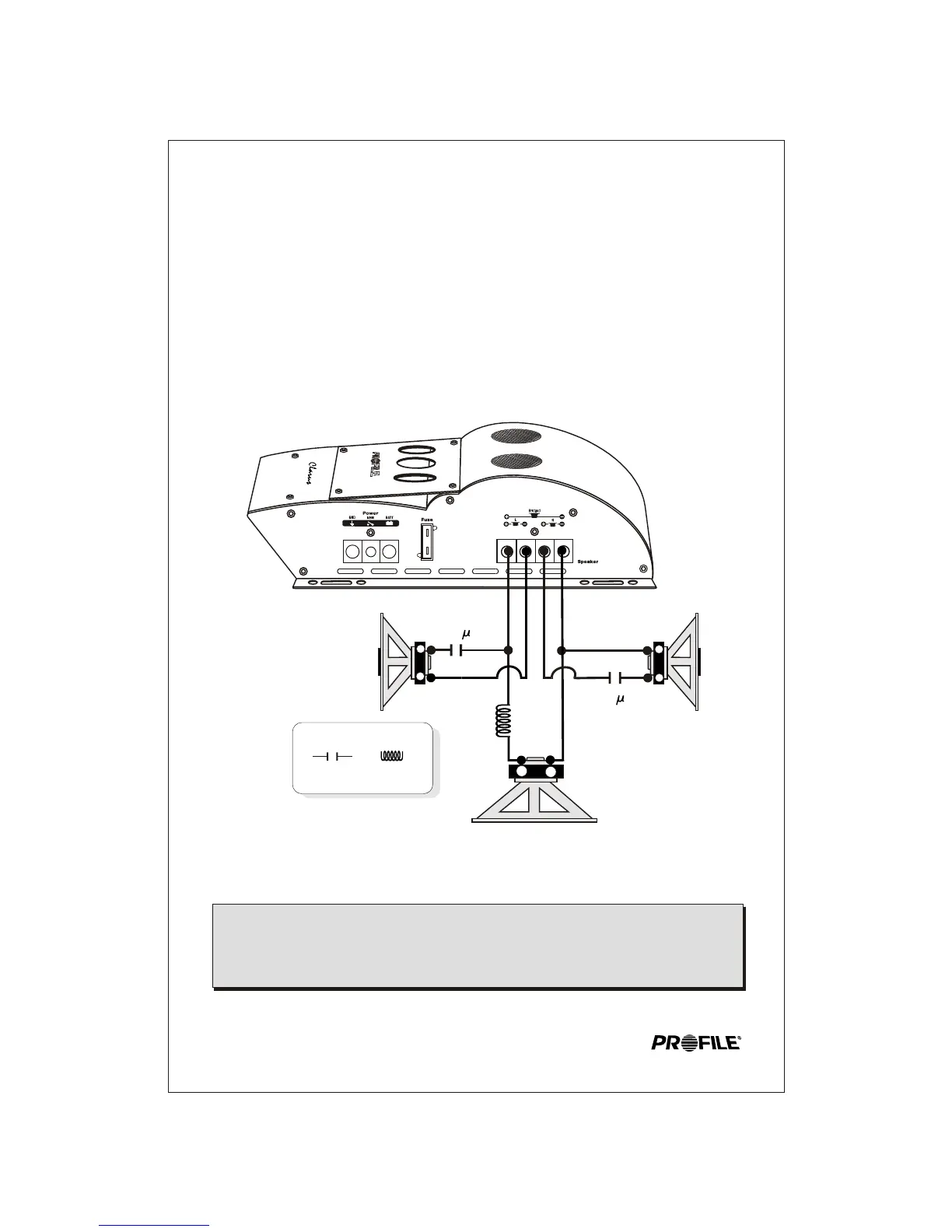

SPEAKER CONNECTIONS (TRI-MODE)
NON-POLAR
CAPACITOR
NON-POLAR
CAPACITOR
INDUCTOR
(COIL)
INDUCTOR
(COIL)
LEGENDLEGEND
FF 100100
++
--
FF100100
++
--
++
--
4 mH4 mH
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
12
The amplifier is capable of running in a Mono / Stereo mode. This feature gives the amplifier
the ability to run stereo satellites (midbass & tweeter) simultaneously with a mono subwoofer.
These connections are more complicated because they require the use of passive crossover
networks (Not provided) to divide the frequencies to the speakers. We have included a sample
diagram for 4 Ohm connections. If you wish to use multiple speakers to achieve a lower
impedance and higher power, it is strongly recommended that you seek professional advice
from your Profile retailer before attempting to make these connections.
Please Note: In the Tri-mode configuration, the amplifier's built-in crossover must be set to
the "OFF" position so the speakers receive full range output.
