2. Unplug Opal Nugget Ice Maker. Unhook Opal’s drain tubes and drain the water from the reservoir.

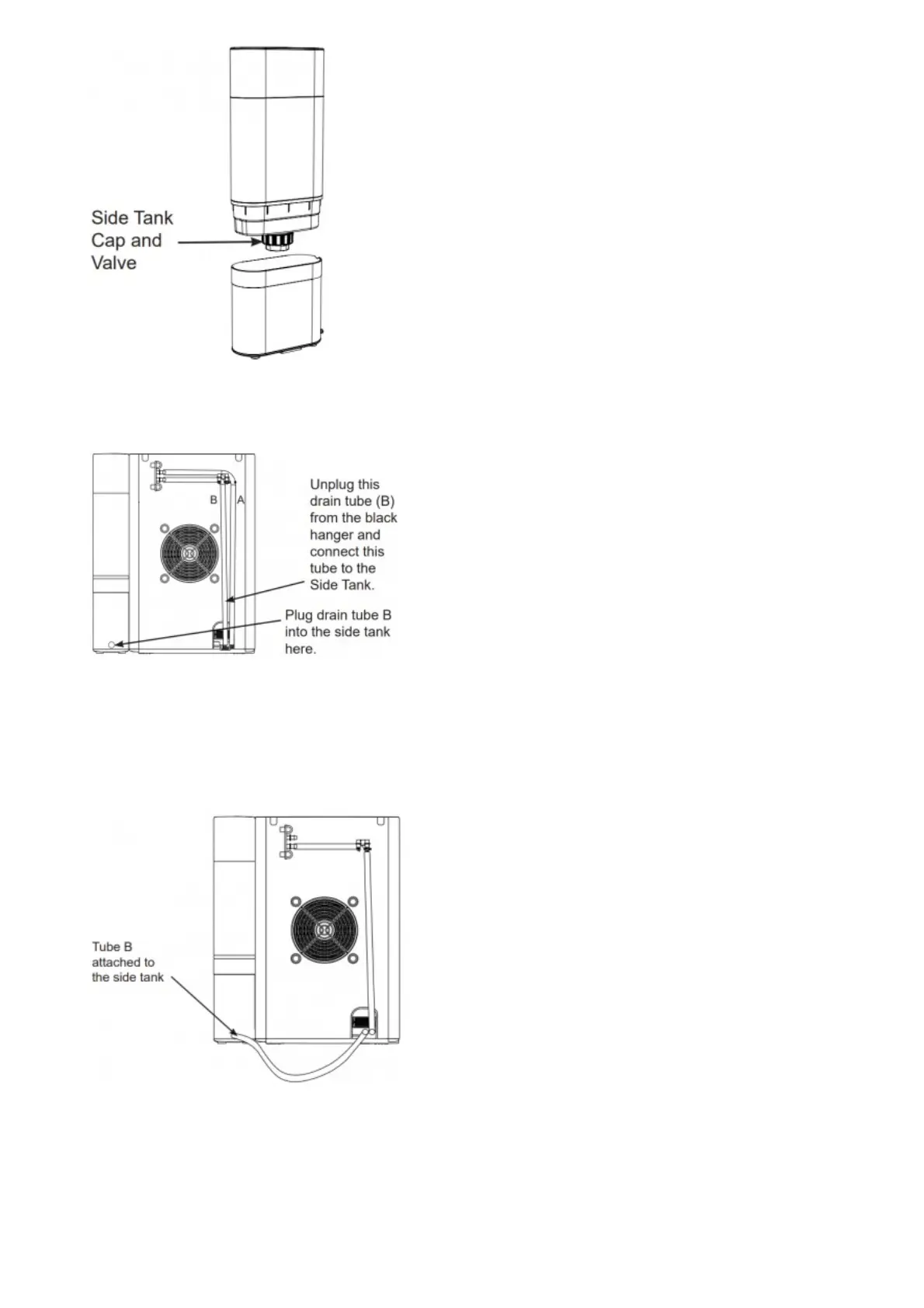

3. Connect drain tube, labeled B, to the back of Opal Side Tank’s base.
4. Make sure drain tube (A) is connected to the black hanger and installed on the back of Opal.
5. Make sure drain tube (B) connecting to the Side Tank is resting flat on the countertop.
6. Place Opal Side Tank on the right or left-hand side of the the Opal Nugget Ice Maker. Using the side tank
attachment, slide the shorter side of the attachment under the unit, near the front of the unit. The attachment
will slide into a slot on the bottom of the unit. Once this is placed, the side tank can slide onto the opposite
attachment. See figures below and on next page.
NOTE: Care should be taken to connect the correct tube to the Opal Side Tank. Tube (B) should always be
connected to the Side Tank whether it is installed on the left or right side of the Opal Nugget Ice Maker. It is
important to make sure the tube is lying flat, otherwise water may not flow from the side tank into the ice maker
