PF3100 IO Modbus Card Product Manual
PROFIRE
1.855.776.3473
solutions@profireenergy.com Page 7 of 10
Wiring Specifications
12-30 AWG can be used for all connections. External fuses must be installed according to the local electrical code.
Wire gauge size must also be selected in accordance with local electrical codes.
5. Mounting Instructions
Mounting the Card in the Enclosure

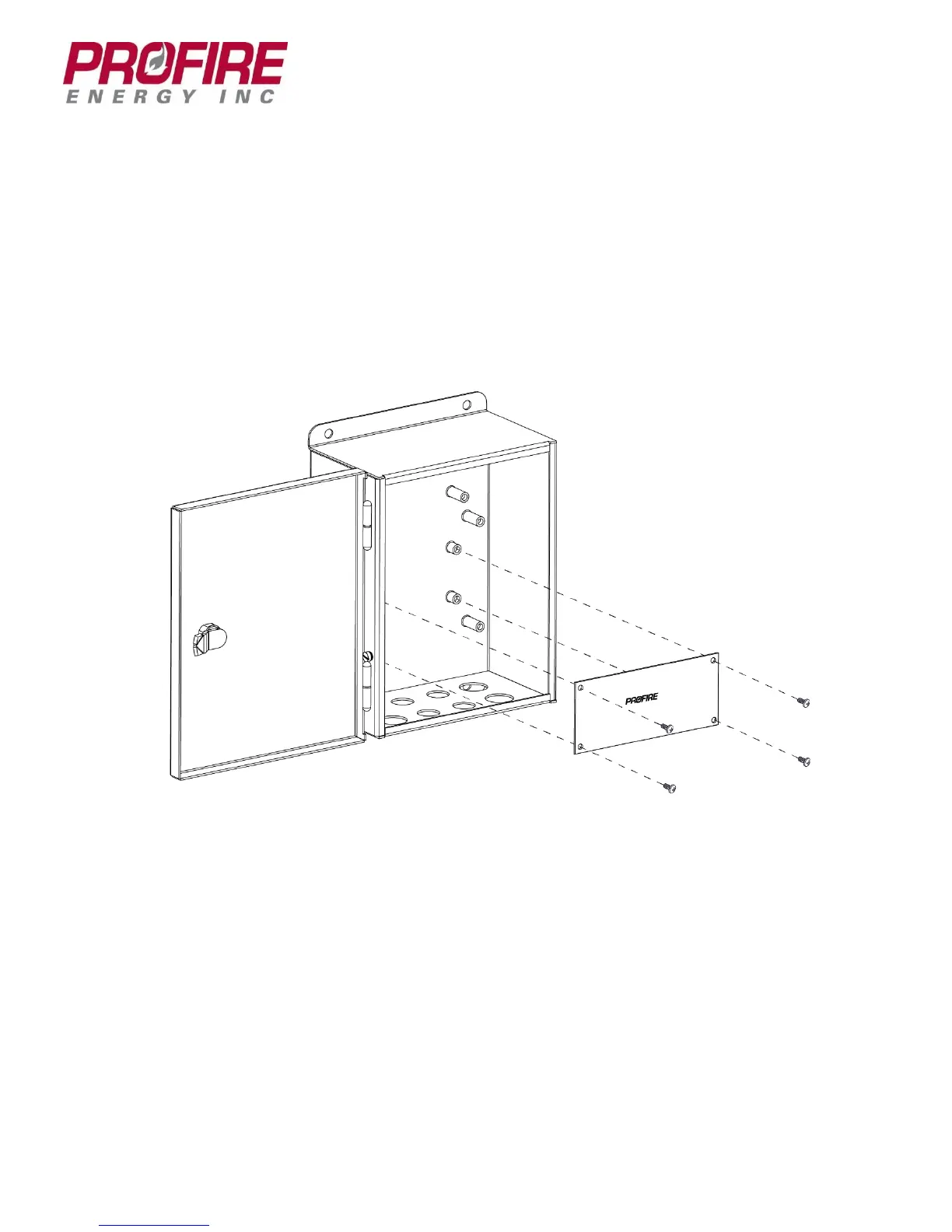

1. Install four (4) #10-32 screws through the Modbus card (as indicated in the image below) and attach them to
the upper set of enclosure stand-offs. Please note the board orientation.
2. Torque to 26 in*lb.
