Wiring Diagrams (Continued)
LPFA40PF, RMC-FA60PF, RMC-FA125PF, RMC-FA150PF

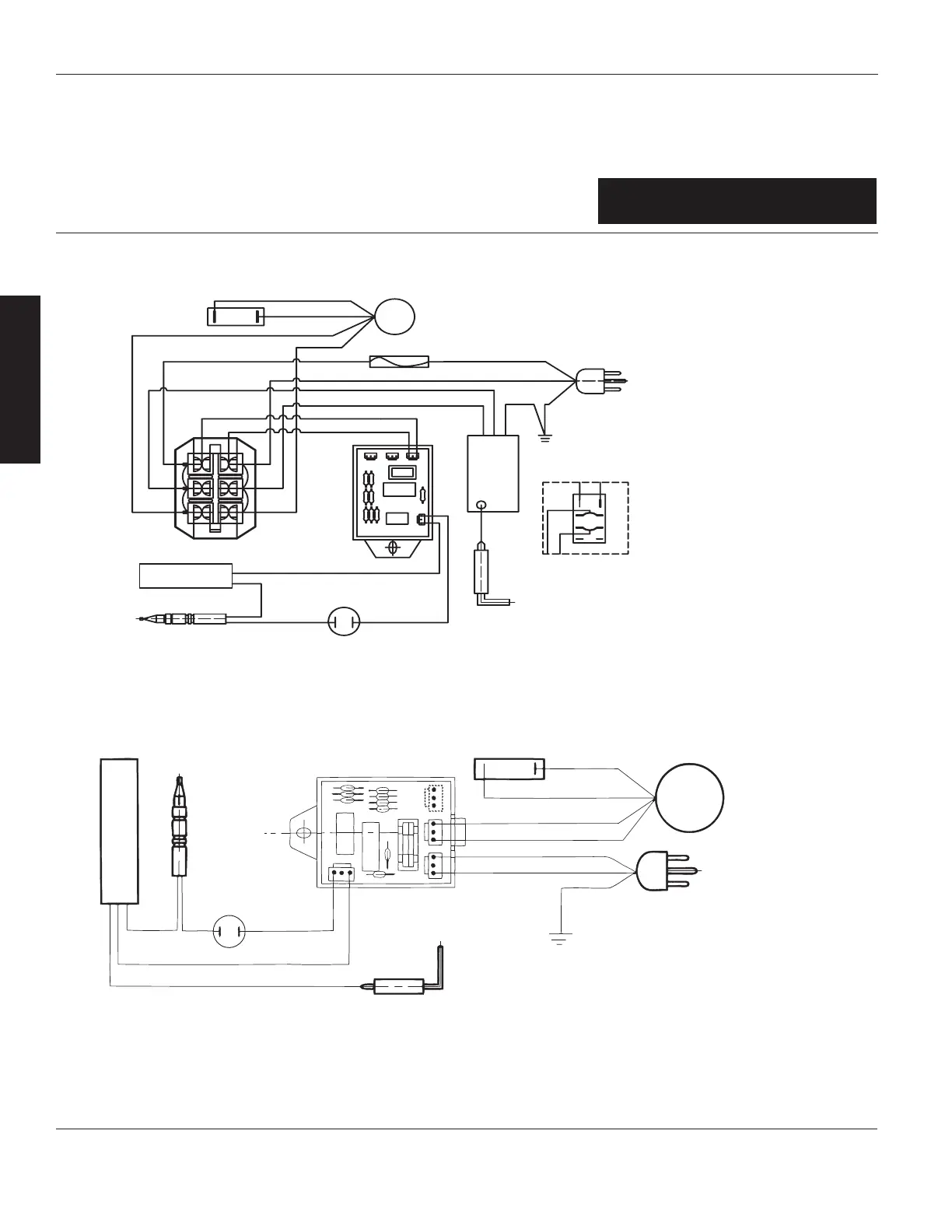

Figure 4 – Piezo/Manual Spark Models LPFA40PF
Ignitor
Condenser
Power Cord
Blue
Yellow
White
Blue
White
Black
White
Black
Green
Earth (Shell)
Black
Yellow
Control Valve
Thermocouple
Thermal Switch
If any original wiring supplied with the
heater must be replaced, it must be with
type AWG 105°C wire or its equivalent,
except as indicated.
E
N
G
L
I
S
H
Motor
Earth
