6. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 20). To protect the floor or carpet
from damage, place a mat under the treadmill.
7
101
78
101
82
78
103
103
82
97
85
85
97

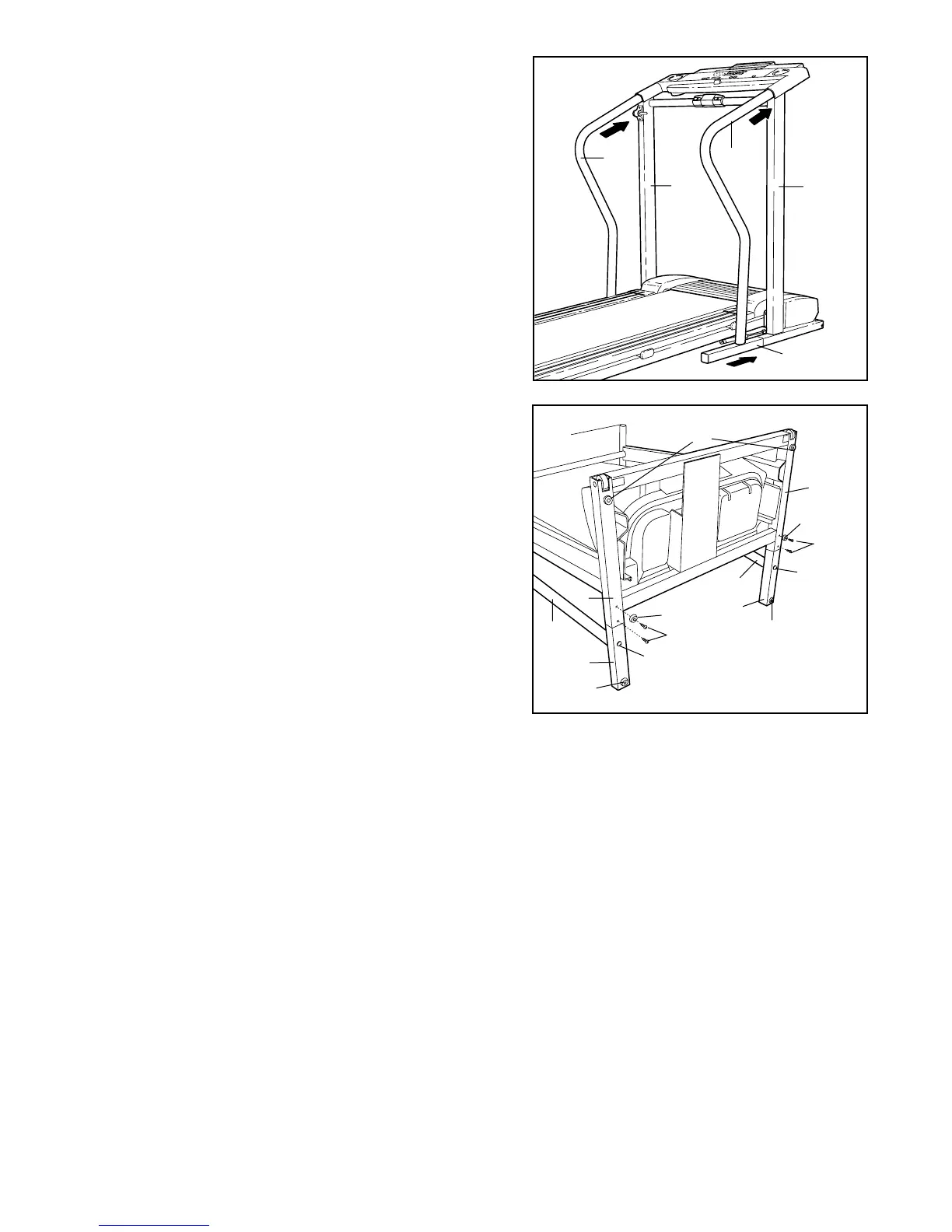

4. Slide the upper end of a Handrail (85) and then the
Extension Leg (103) into the right Upright (82) as shown.
Note: It may be helpful to tip the Uprights (82) forward as
you insert the Extension Leg. If necessary, tap the
Extension Leg with a rubber mallet to fully insert it.
Slide the other Handrail (85) into the left Upright (82) as
described above.
82
85
85
82
103
4
5
116
116
97
5. With the help of a second person, carefully tip the Uprights
(82) down as shown.
Make sure that the Extension
Legs (103) and Handrails (85) remain in the Uprights.
Next, attach each Extension Leg (103) with two Screws
(101) and a Base Pad (116) as shown in drawing 5.
Make sure that the Extension Legs are fully inserted into
the Uprights (82) and push down on the Uprights as you
tighten the Screws. Tighten the Handrail Bolts (78).
Note: One replacement Base Pad (116) and Spacer (not
shown) are included. If a Base Pad becomes worn and
needs to be replaced, use the replacement Base Pad. If
a Thick Base Pad (97) needs to be replaced, use the re-
placement Base Pad with the Spacer.
With the help of a second person, carefully tip the
Uprights (82) back to the upright position.
To Next Page
