7.
Attaching the Fan Blades (continued)
Attaching the decorative rod and fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not bend the blade
arms while installing, balancing the blades, or cleaning the fan. Do not
insert foreign objects between rotating fan blades.
Step 1. Rotate the decorative rods onto the setscrew on the motor housing
and firmly tightened. (Fig. 11)
Step 2. Insert the decorative rods through the holes on the decorative rod
holder. (Fig. 11)
Step 3. Fasten the blade assemblies to the fan motor assembly. Tighten the
two blade arm screws with lock washers provided. (Fig. 11)
Step 4. Repeat this procedure for the remaining blade assemblies.

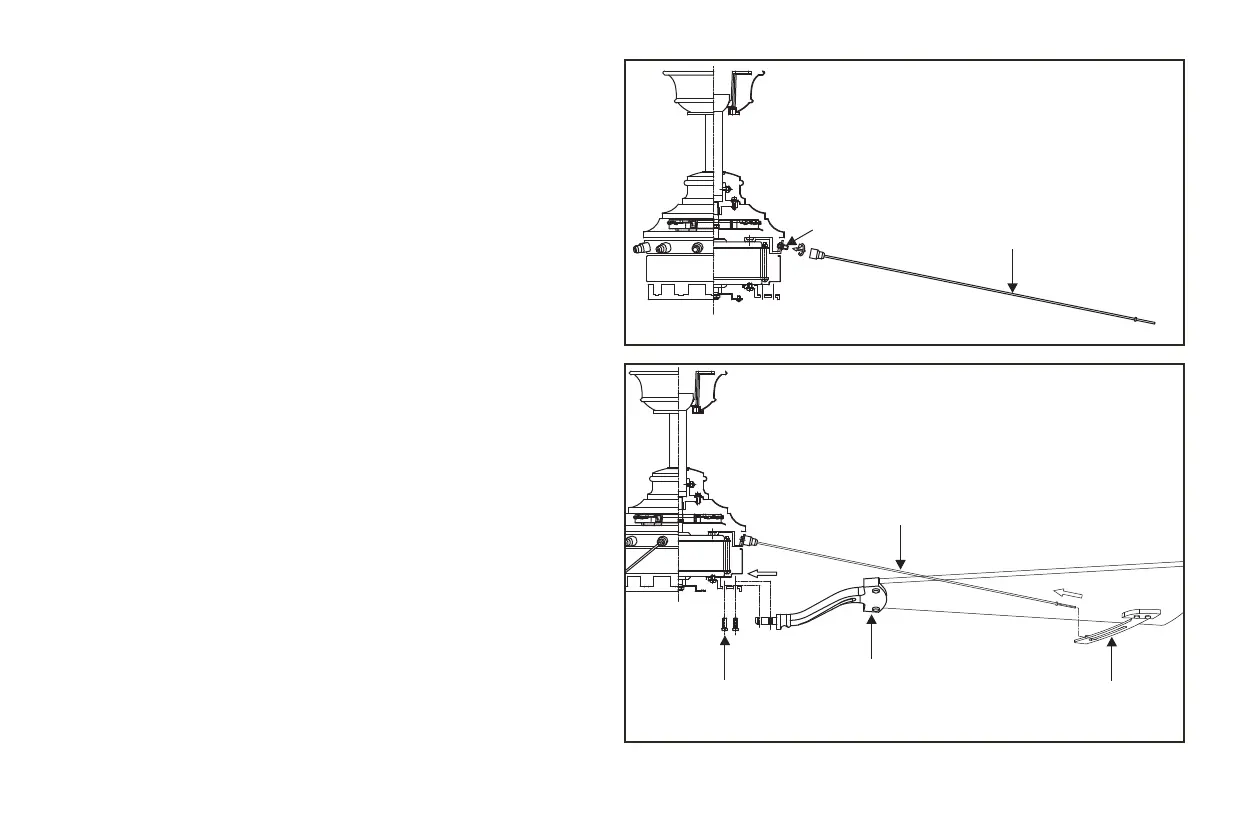

Figure 11
Decorative rods
Setscrew
Figure 12
Decorative rods
Decorative rod
holders
Blade assembly
Blade arm screws (
1/4" x 13mm)
with fiber washers
