Progressive Dynamics PD1600 Series Quick Reference Guide

4
Consult a licensed electrician or RV technician for installation assistance 814420 Rev. C
Inverter Display Panel

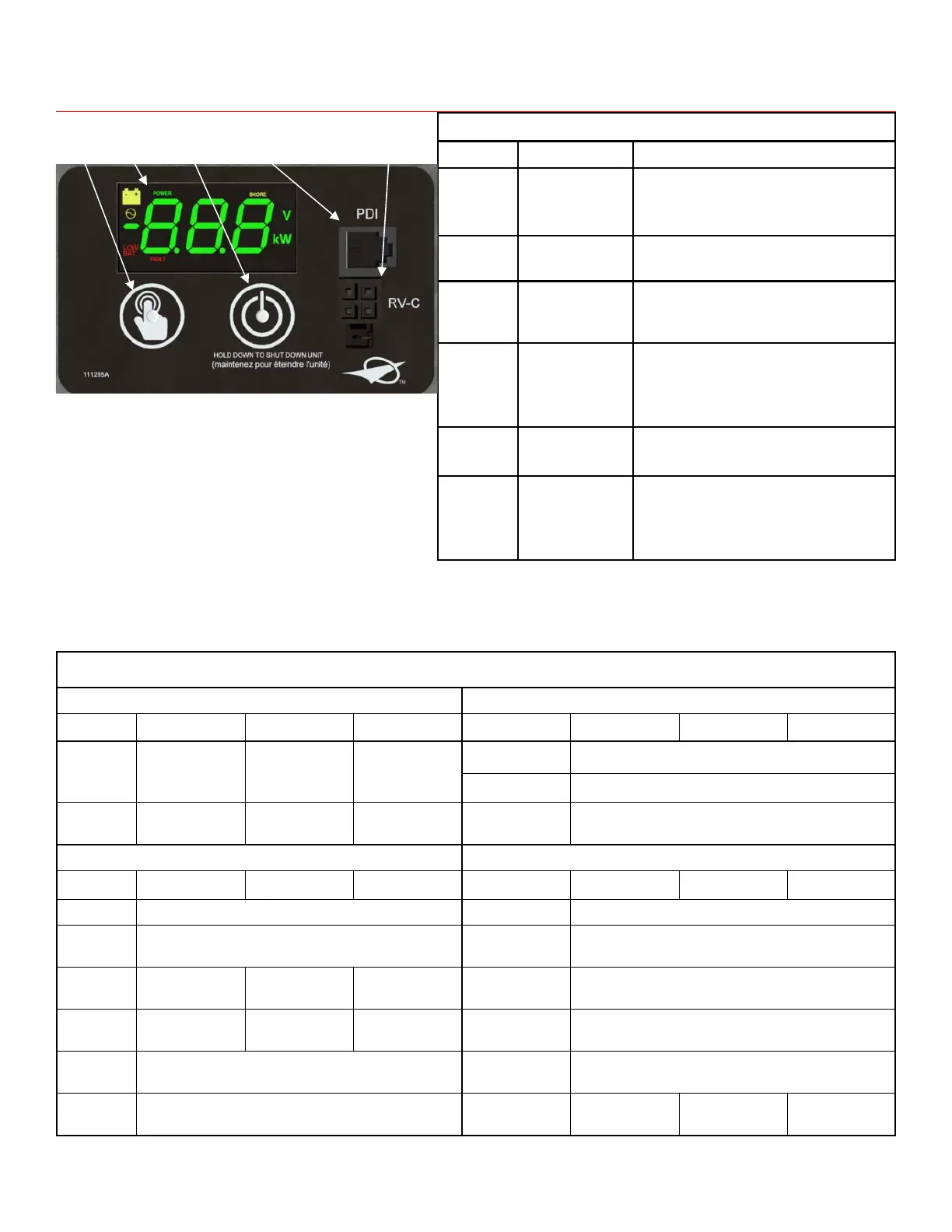

Figure 7 Display Panel
Error Code Condition Action
E-1
Low battery volt-
age detected
 Re-charge the battery
 Check DC cable size
 Tighten DC connections
E-2
High battery volt-
age shutdown
 Disconnect external sources (alternator
or charger)
E-3
AC output over-
load shutdown
 Evaluate the loads connected to the AC
outlet of the unit. Loads may need to be
reduced.
E-4
Over-temperature
shutdown
 Reduce load to the AC output
 Ensure that the inverter is in a dry, well
ventilated space with adequate air flow
 Ambient temperature may be too high
ERROR CODES
E-5
Internal Error
 Ensure all connections are tightened
 Contact the PDI Service Department
E-6
Short Circuit
 Look for damaged AC loads
 Look for faulty AC wiring
 Evaluate peak power requirements for
all loads
Display Features

Power Button: Press to turn on; hold to turn off
 Select Button: Cycles between display states:
Input Voltage, Output Voltage, Output
Power, Standby, Error Code (if applicable)
 Power Indicator: Lights up green when the inverter is on
 Shore Indicator: Lights up yellow when AC input is detected
 Low Bat Warning Indicator: Lights up red when the battery
is nearing the end of its charge
 PDI Remote Port for externally mounted display
 RV-C Port for communication with a RV-C compatible hub
*All ratings at 25 °C unless otherwise listed
Select
Button
Display
Power
Button
PDI Remote Port
(use with PD1601)
RV-C Port
(use with RV-C
Compatible Device)
SPECIFICATIONS
PHYSICAL SPECIFICATIONS TRANSFER SWITCH
PD1610 PD1618 PD1620 PD1610 PD1618 PD1620
Dimensions
L:11.2”(284mm)
W:6.7”(170mm)
H:4.0”(101mm)
L:15.0”(381mm)
W:7.9”(200mm)
H:4.0”(101mm)
L:15.0”(381mm)
W:7.9”(200mm)
H:4.0” (101mm)
Transfer Voltage 95 - 135 VAC
Transfer Time < 50 msec
Net Weight 7 lbs (3.2 kg)
11 lbs (5.0 kg) 11 lbs (5.0 kg)
Pass Through
Ampacity
20 AAC
AC OUTPUT DC INPUT
PD1610 PD1618 PD1620 PD1610 PD1618 PD1620
Waveform Pure Sine Wave Nominal Voltage 12.0 VDC
Output
Voltage
120
VAC
Under-Voltage
Shutdown
10.5
VDC
Max Power
(Cont)
1000W
1800W 2000W
Under-Voltage
Restart
12.0 VDC
Max Power
(Peak)
2000W
3600W 4000W
Over-Voltage
Shutdown
15.5 VDC
Frequency 60 Hz
Over-Voltage
Restart
15.0 VDC
Peak
Efficiency
90%
Max Current @
max load
100 ADC 180 ADC 200 ADC
