Display Operation

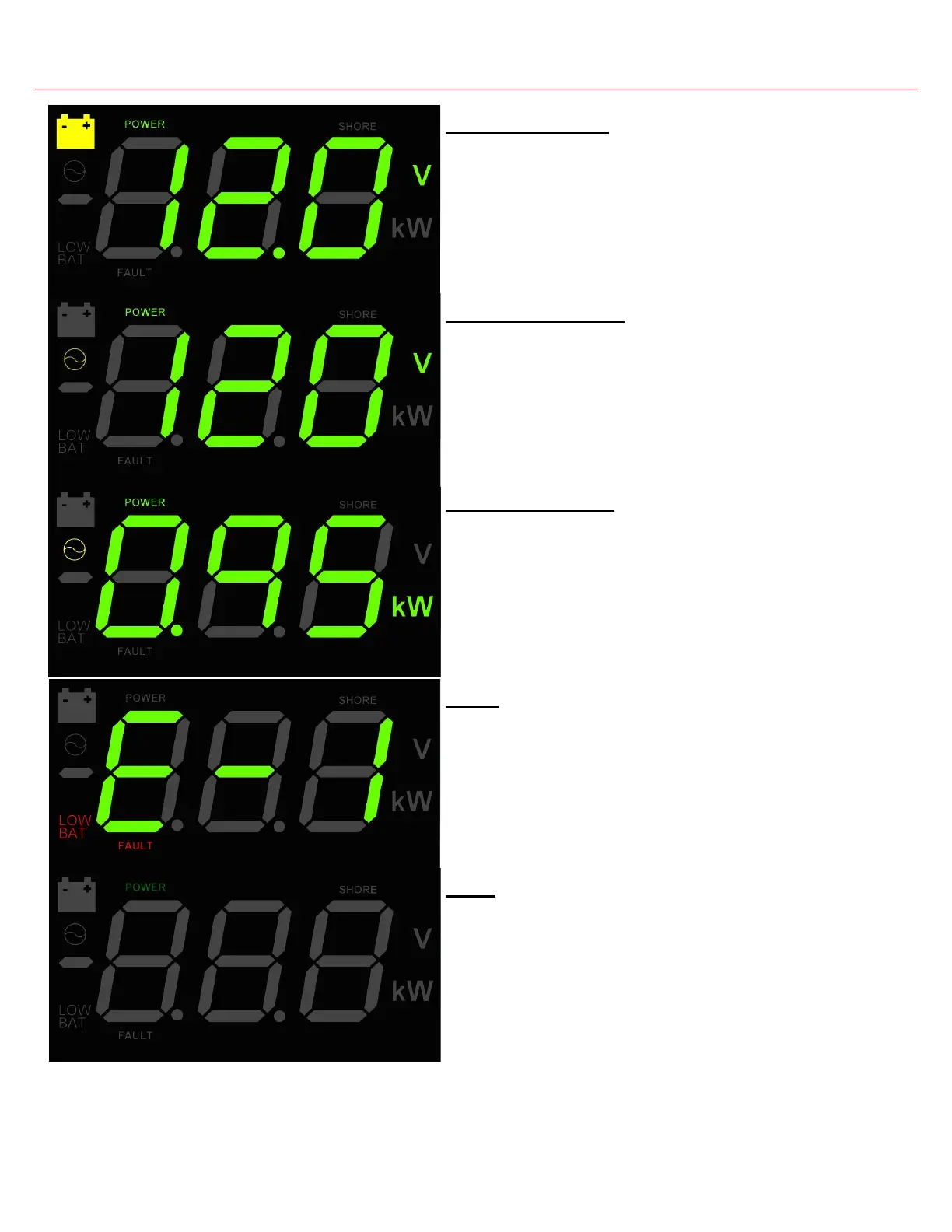

Figure 15 Display States
DC Input Voltage
 Battery indicator is illuminated
 Volts indicator is illuminated
 DC Input Voltage measurement is always available
 DC Input Voltage measurement is the default display state on start up
AC Output Voltage
 AC indicator is illuminated
 Volts indicator is illuminated
 AC Output Voltage measurement is available only when the inverter is
supplying power (not when the inverter is in shore power mode)
AC Output Power
 AC indicator is illuminated
 kW indicator is illuminated
 AC Output Power measurement is available only when the inverter is sup-
plying power (not when the inverter is in shore power mode)
Sleep
 Only indicators that may be illuminated are: Power, Shore, Fault, and Low
Battery
 Indicators in sleep mode will be noticeably dimmer than in any other state
 The PD1600 series inverter display automatically enters sleep mode when
neither of the control buttons have been pressed for 30 seconds
 The inverter will automatically exit sleep mode when any error occurs or
shore power is detected
 To manually exit sleep mode press either button. Pressing the power button
will not turn off the inverter; it must be held for 5 seconds to power down.
Error
 Error code display is only available if the inverter is currently in an error
state
 See Figure 13 for error code descriptions
 See page 14 for troubleshooting guide if error code persists
NOTE: To cycle through the display states simply press the select button. Display states cycle in order as listed on this page. The display
will skip un-available display states (see display state descriptions above for additional details).
