PROHEAT M-SERIES SERVICE MANUAL
3-5
PROHEAT fuel filter – Check:
a) For filter contamination and restrictions.
b) For damaged inlet fitting.
Test Procedure – Fuel filter inspection, cleaning and/or replacement:
a) Disconnect the fuel supply line at the PROHEAT.
b) Remove the fuel filter adapter and fuel inlet fitting located in the
burner head.
c) Remove O-ring and filter. Inspect for contamination and/or restrictions.
Clean filter using electrical contact cleaner, brake cleaner or warm
soapy water. Replace if necessary.
d) Inspect the O-rings for contamination and/or damage. Clean O-rings
with a cloth or replace as necessary.
e) Inspect and clean the filter cavity and O-ring seat as necessary using
contact or brake cleaner.
f) Reinstall filter, O-rings and inlet adapter. Tighten the adapter until it
bottoms out against the face.
g) Reconnect the fuel supply line.
h) Switch the PROHEAT on and operate for at least one complete cycle.
Observe the operation.
If a Start diagnostic code is indicated, proceed to Step 3.
START: Fuel System Step 2
(1 Flash)

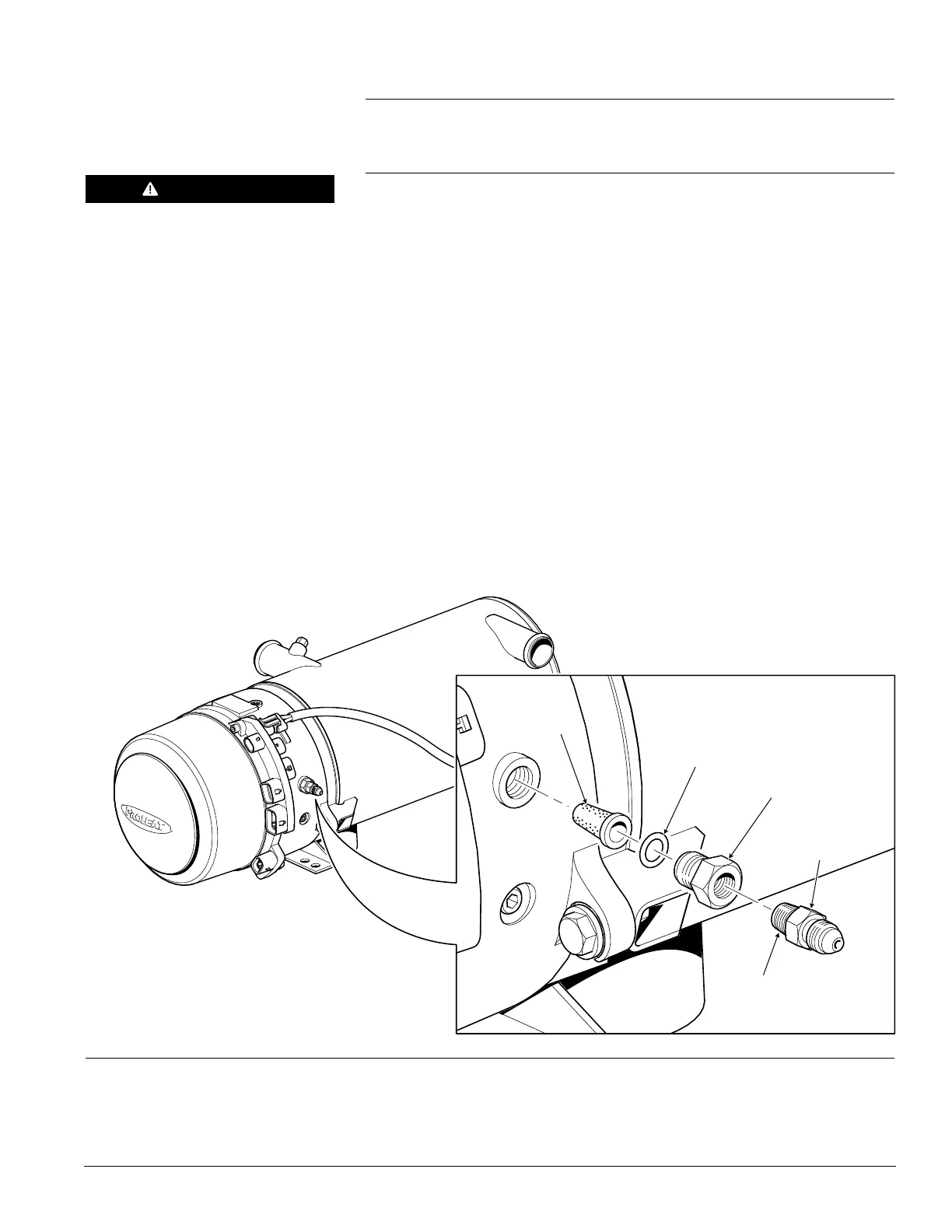

Figure 3-2: Fuel Filter Assembly and Location
O-RING
FILTER
ADAPTER
TORQUE = 50 in-lbs
INLET FITTING
TORQUE = 100 in-lbs
THREAD SEALANT REQUIRED
WARNING
Flammable.
To Next Page
