17
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

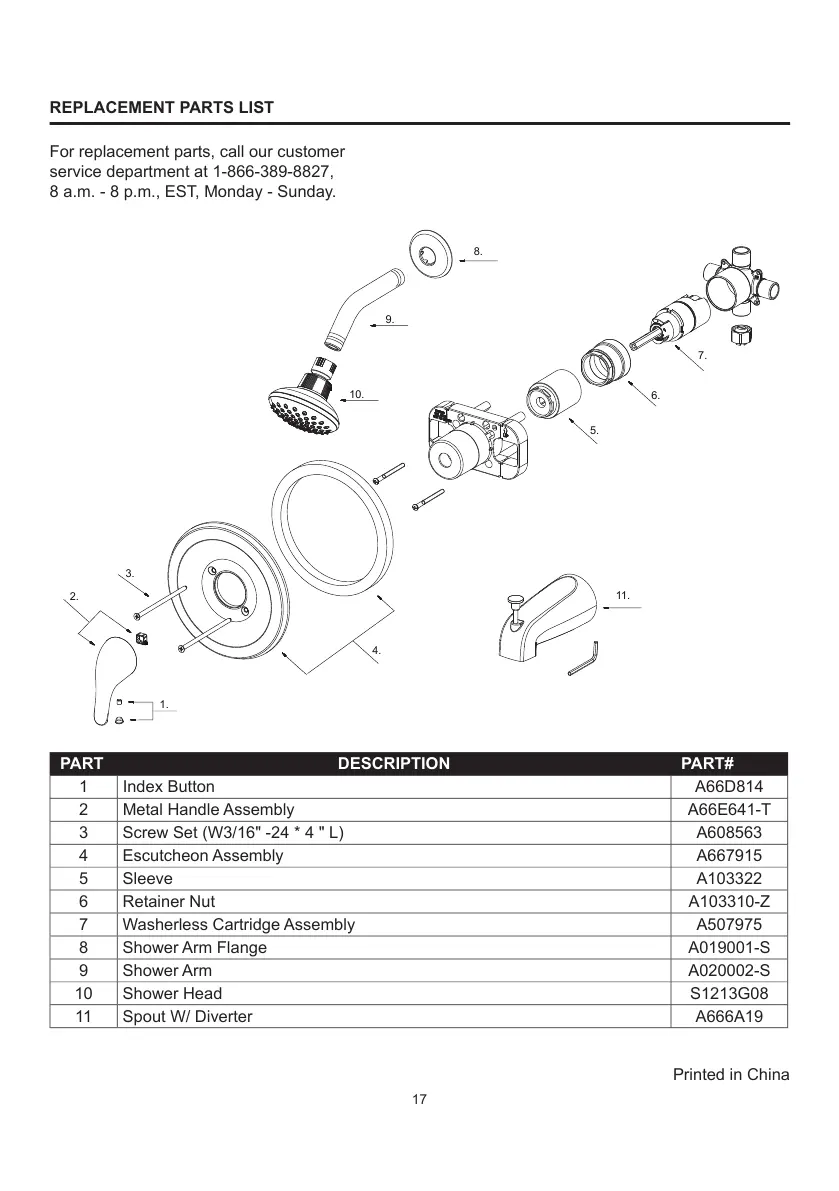

REPLACEMENT PARTS LIST
For replacement parts, call our customer
service department at 1-866-389-8827,
8 a.m. - 8 p.m., EST, Monday - Sunday.
PART DESCRIPTION PART#
1 Index Button A66D814
2 Metal Handle Assembly A66E641-T
3 Screw Set (W3/16" -24 * 4 " L) A608563
4 Escutcheon Assembly A667915
5 Sleeve A103322
6 Retainer Nut A103310-Z
7 Washerless Cartridge Assembly A507975
8 Shower Arm Flange A019001-S
9 Shower Arm A020002-S
10 Shower Head S1213G08
11 Spout W/ Diverter A666A19
Printed in China
