Project Source F1A1F506CP - VALVE BODY AND PIPE CONNECTIONS

8

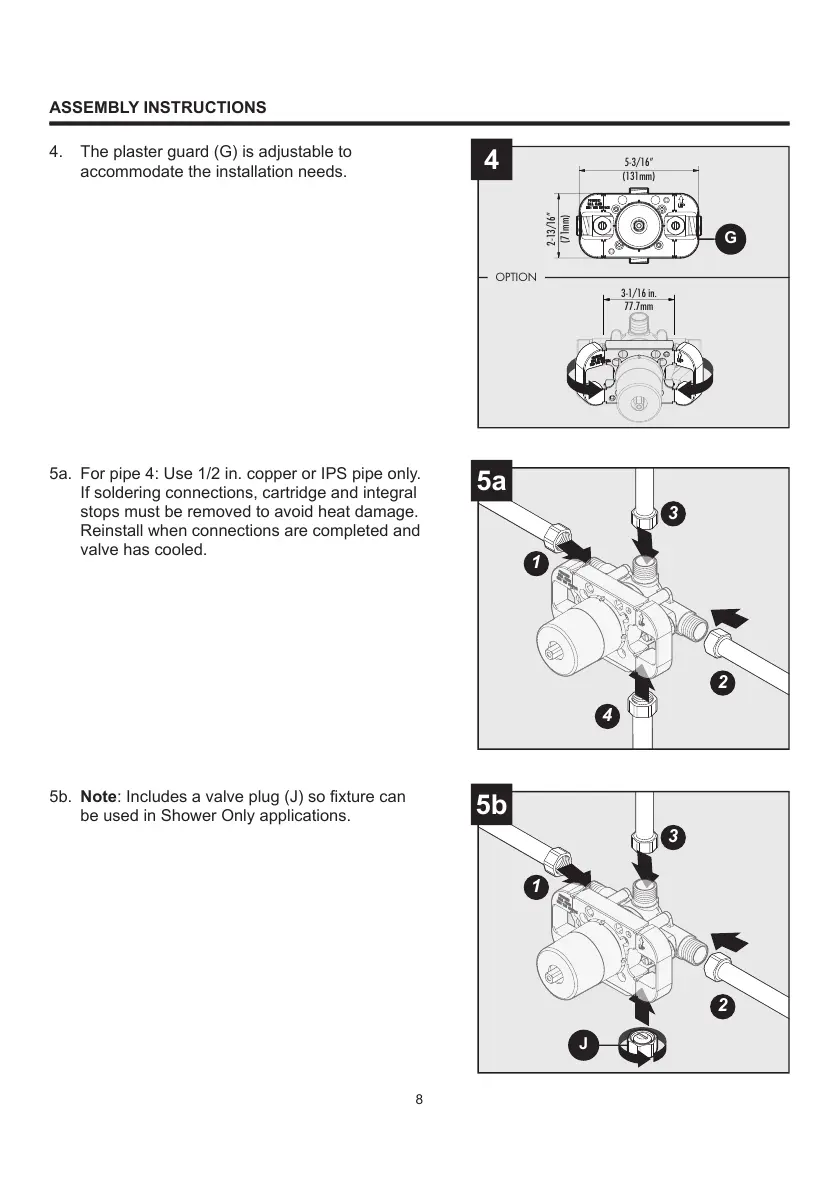

ASSEMBLY INSTRUCTIONS
4. The plaster guard (G) is adjustable to
accommodate the installation needs.
5a. For pipe 4: Use 1/2 in. copper or IPS pipe only.
If soldering connections, cartridge and integral
stops must be removed to avoid heat damage.
Reinstall when connections are completed and
valve has cooled.
5b. Note: Includes a valve plug (J) so fixture can
be used in Shower Only applications.
4
1
3
4
2
5a
1
3
2
5b
4
5a
5b
G
J
5-3/16”
(131mm)
3-1/16 in.
77.7mm
2-13/16”
(71mm)
OPTION
