Project Source F1A1F506CP - COMPONENT INSTALLATION

9

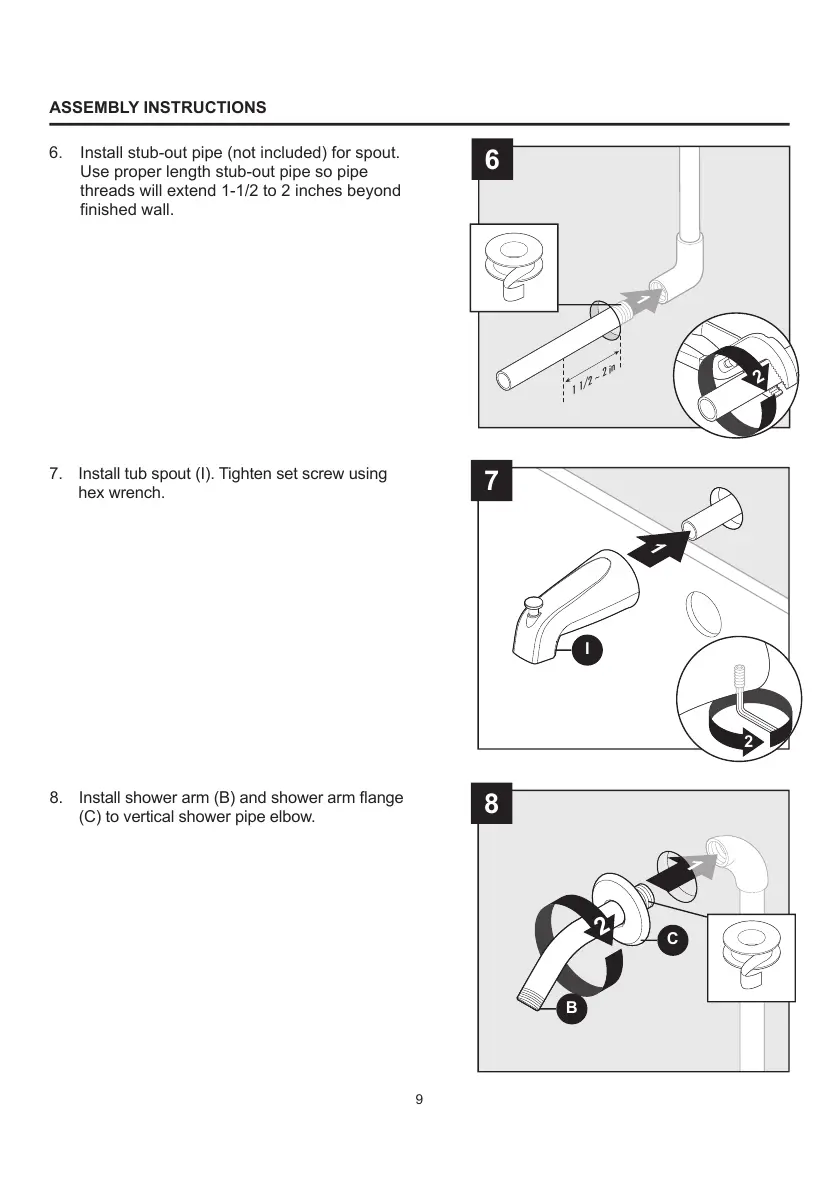

6. Install stub-out pipe (not included) for spout.
Use proper length stub-out pipe so pipe
threads will extend 1-1/2 to 2 inches beyond
finished wall.
8. Install shower arm (B) and shower arm ange
(C) to vertical shower pipe elbow.
ASSEMBLY INSTRUCTIONS
7. Install tub spout (I). Tighten set screw using
hex wrench.
1
7
1
2
8
1
6
7
8
6
I
C
B
1 1/2 ~ 2 in
2
2
