Project Timber Corner Shed - 7. Fix the Centre Purlin and Fixing Block to the Back Corner, and Fix to the Door Panel; 8. Fit and Fix Roof Support to the Centre Purlin and Side Panels; 9. Fit the Eaves Purlin to the Roof Sheets as Shown

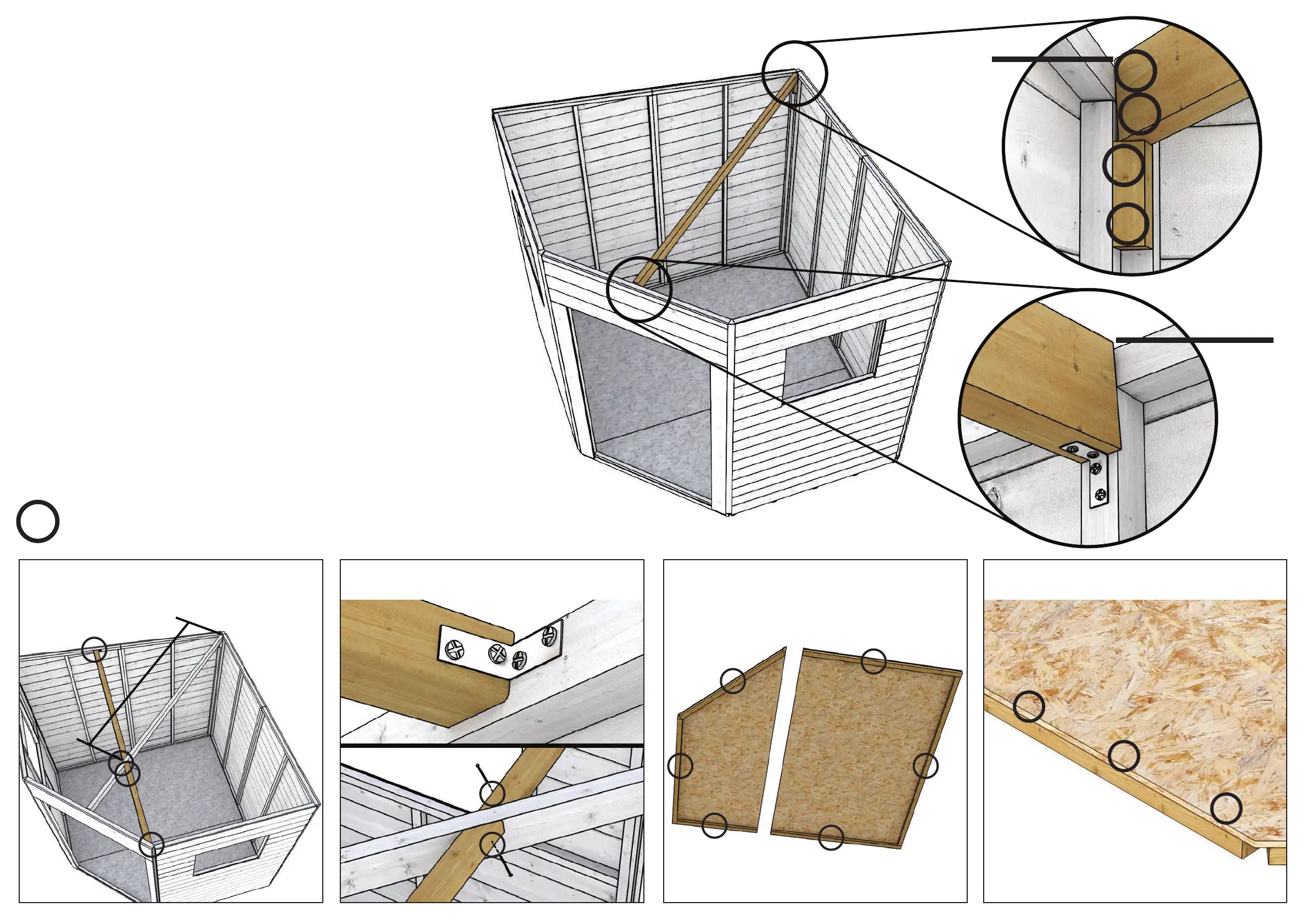

7. Fix the Centre Purlin
and Fixing Block to the
back corner, and fix
to the Door Panel
8. Fit and fix Roof Support
to the Centre Purlin and
Side Panels
Screw Here
9. Fit the Eaves Purlin to the
Roof Sheets as shown
S30
Screws
Fixing
Block
Sits flush
at top
Sits flush
at top
S50
Screws
8. Roof Support fixing
1720mm
Roof Support fittings
S50
Screws
S30
Screws
Eaves Purlin fixing
N30
Nails
9. Eaves Purlin Fixing
Position
