Project Timber Evolution My Den 8x6 - Page 11

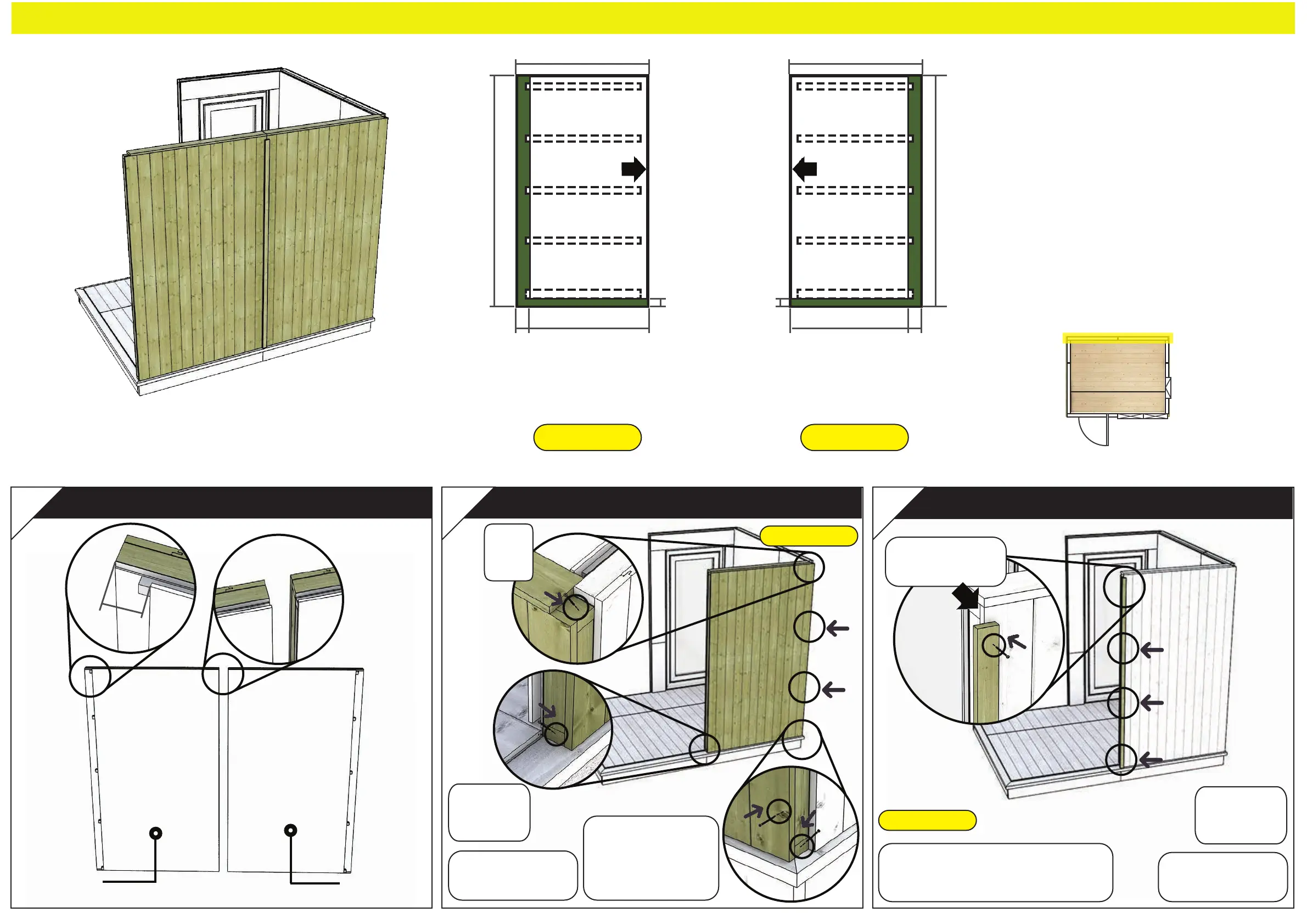

REAR - Wall Panels Section Stages
Panel Position Diagram
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(RIGHT)
Rear
1. LEFT Back Panel
1220mm (1)
2. RIGHT Back Panel
1220mm (1)
3. Rear Cloaking Strip (1)
60mmx16mmx2012mm
Parts List required:
16mm
2055mm
74mm 1146mm
1220mm
Lining Flush
16mm
2055mm
74mm1146mm
1220mm
Lining Flush
LEFT Back Panel
(1220mm) Diagram
RIGHT Back Panel
(1220mm) Diagram
ID: PT25541 ID: PT25542
74mm
1220mm
Back Panel (LEFT)
1220mm
Back Panel (Right)
Back Panels Position
28
50mm
Screws
Back
Pilot drill holes
before fixing
Angle
screw
at top
Align and fix
the back plain
(LEFT) panel
Back Panel Stages
ID: PT25541
29
50mm
Screws
Back
Side
(RIGHT)
Pilot drill holes
before fixing
Position and fix the
Back Cloaking Strip (CS)
Gap for guttering
at top
REAR - Cloaking Strip (CS)
ID: PT21074
30
