Project Timber Evolution My Den 8x6 - Page 14

Door on the Left Panel Stages
50mm
Screws
Front
Pilot drill holes
before fixing

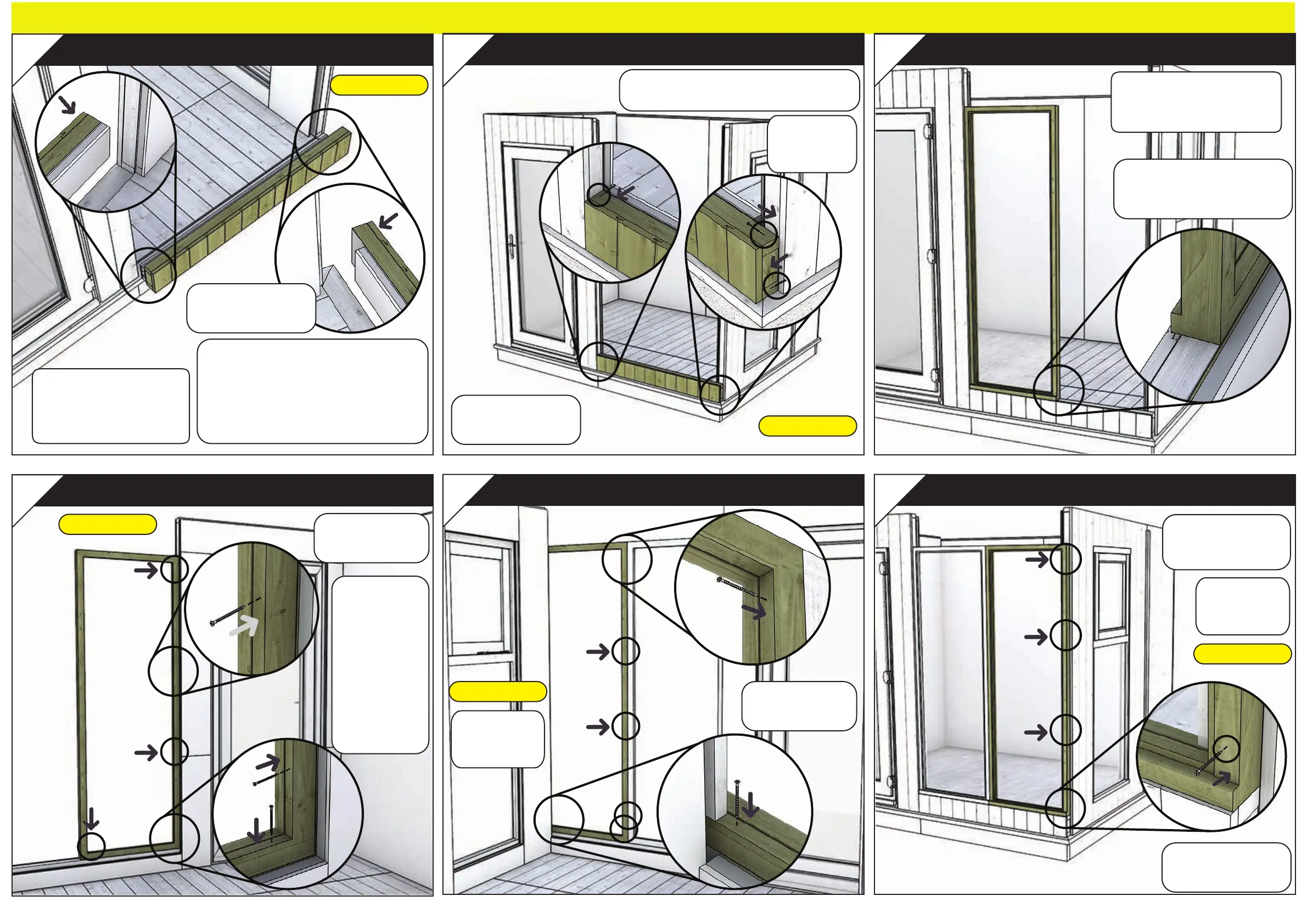

Secure the Bottom Panel
Bottom Panel Stages
ID: PT20327
Front
Position and align
the Glazing Unit
Glazing Unit fixing
*Check the Front Window
Panels position option
(LEFT or RIGHT).
Front
Slide and fit the Bottom
Panel (LEFT) to the
side of door section and
side gable panels.
Check the corner
gap of panel
Bottom Panel Stages
*Check the Door Panel
and Front Window
Panels position options
(LEFT or RIGHT).
ID: PT20327
70mm
Screws
Front
Pilot drill holes
before fixing
Glazing Unit fixing
S70
S70
S70
S70
ID: PT18490
70mm
Screws
Front
Pilot drill holes
before fixing
Glazing Unit
fixing
Glazing Unit fixing
S70
S70
S70
S70
ID: PT18490
Front
Secure the
Glazing
Unit.
Use 70mm
Screws
through
the back
rebate
Pilot drill holes
before fixing
Glazing Unit fixing
S70
S70
S70
S70
ID: PT18490
35
38
39 40
36 37
