Project Timber Evolution My Den 8x6 - Page 13

RIGHT - Gable Wall Panels Section Stages
Door on the Left Panel Stages
Panel Position Diagram
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(RIGHT)
Front
1. Window Glazing Unit (W610mm) - (2) [ID: PT18490]
2. Plain Panel TOP (W1220mm) - (1) [ID: PT20323]
3. Plain Panel BOTTOM (W1220mm) - (1) [ID: 25548]
Parts List required:
Door
(LEFT)
Back

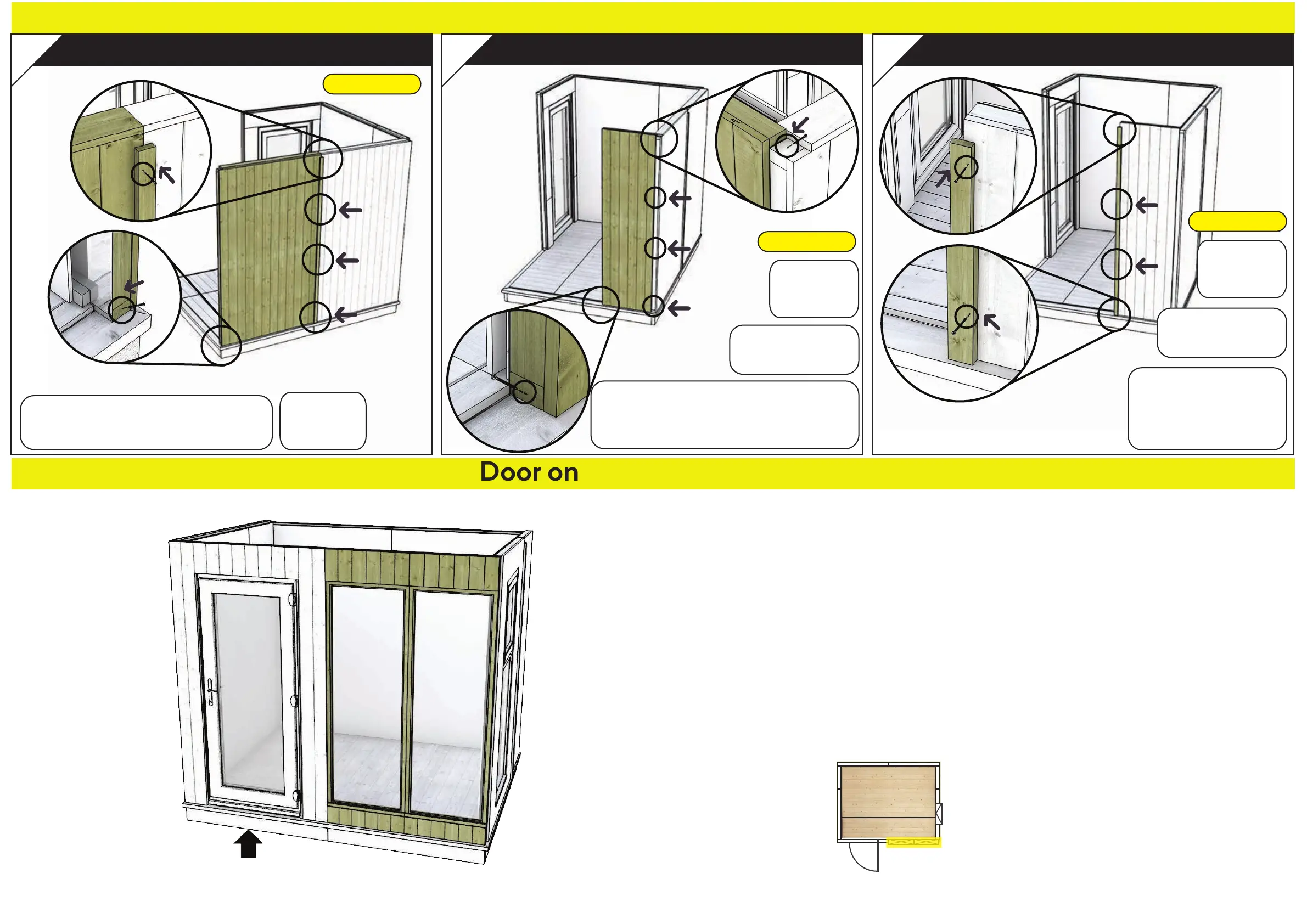

Position and fix the back panel
(RIGHT) and cloaking strip
Back Panel Stages
50mm
Screws
ID: PT25542
32
50mm
Screws
Back
Side
(RIGHT)
Position and fix the side
Plain Gable Panel (right)
Pilot drill holes
before fixing
Right Gable (Low) Panel Stages
ID: PT25532
33
50mm
Screws
Side
(RIGHT)
Pilot drill holes
before fixing
Position and fix
the right gable
cloaking strip
RIGHT - Gable Cloaking Strip (CS)
ID: PT21074
34
