Project Timber Evolution My Den 8x6 - Page 18

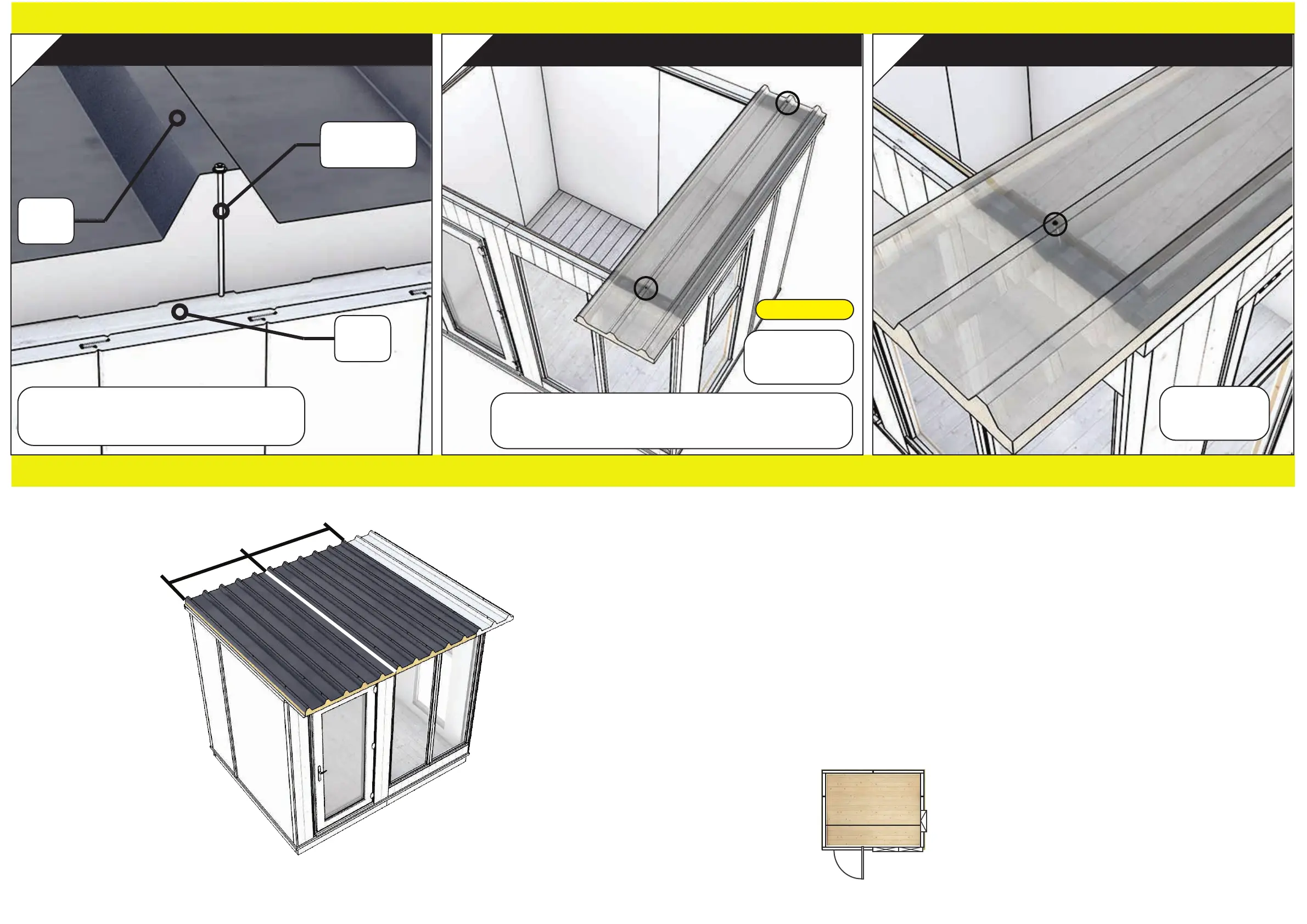

Roof Section Stages
Roof Section Stages
Floor Plan
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(LEFT)
Front
1. Metal Roof Section L2285mm x W1000mm - (2) [ID: PT21150]
2. 115mm Metal Roof Screws
Parts List required:
1m
Wide
1m
Wide
Metal
Roof
Wall
Panels
115mm Metal
Roof Screw
Ensure the 98mm metal roof screws
fix through to the wall panels
Metal Roof Cross-Section Diagram
55
Roof Section Stages
115mm Metal
Roof Screws
Ensure the 115mm metal roof screws is align
and fix through to the wall panels below.
ID: 21159
56
Roof Section Stages
115mm Metal
Roof Screws
57
