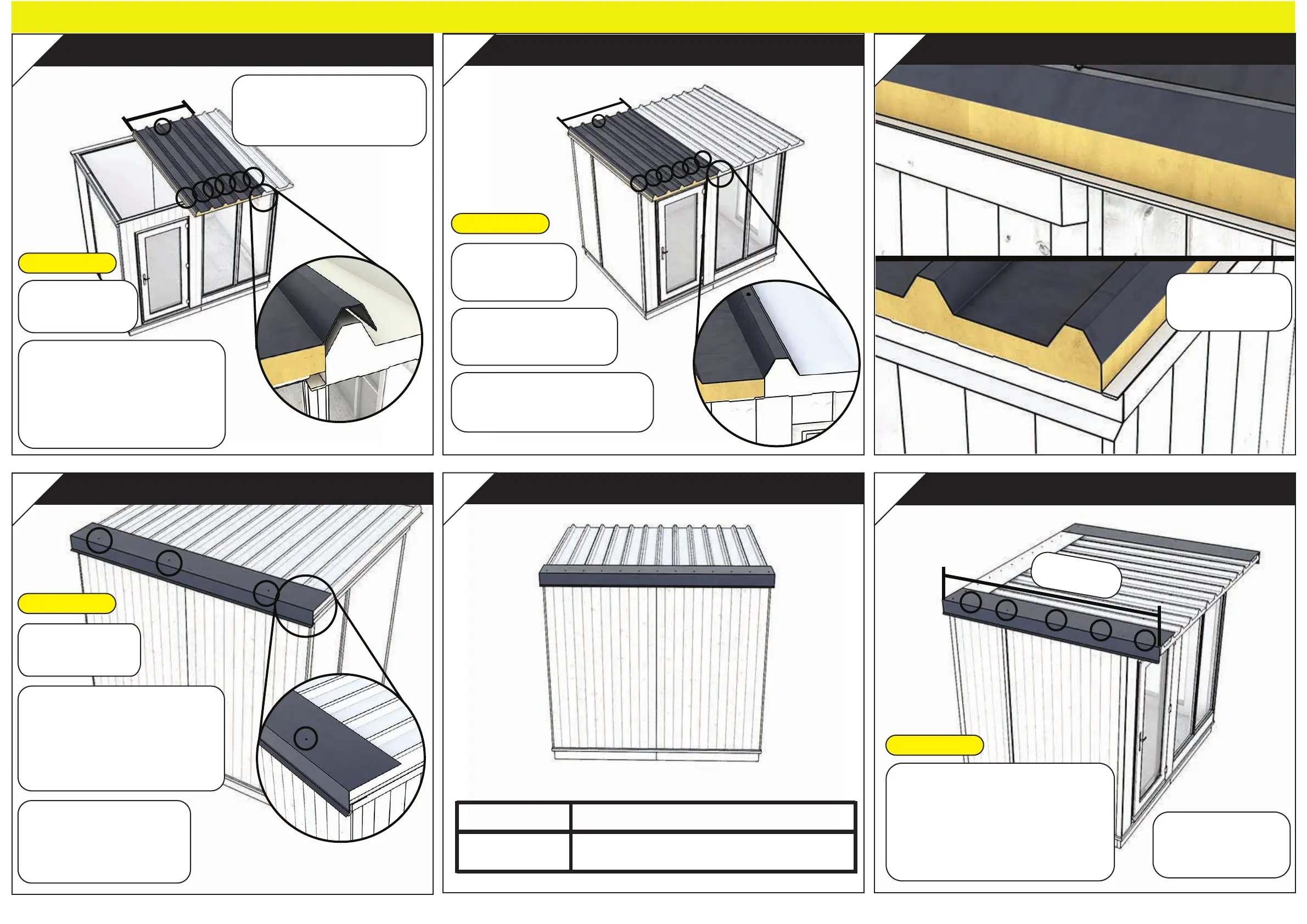

Roof Section Stages
1m
Wide
Repeat previous roof
section fixing stages
115mm Metal
Roof Screws
* Use Step ladder when
fixing the roof sections,
2 people are required.
ID: 21150
Roof section
position
Back
Side
(LEFT)
Side
(LEFT)
Front
1m Wide
Position the 1m wide roof
section and slot it into the
first roof section. Fix in
place with metal
roof screws
Only 1 screw is required
to hold the back in place
in this stage
115mm Metal
Roof Screws
ID: 21150
Water Deflector Flashing Length Size
Building size
8x6
L2530mm x 1
Water Deflector Flashing Lengths
Back View
Barge Board Flashing Stages
Position the Barge Board
Flashing on both side of
roof sections. Fix the
flashing through the top
ridge of metal roof.
2292mm
ID: 21178
115mm Metal
Roof Screws
115mm Metal
Roof Screws
Back
Position and fix the
Water Deflector Flashing.
Fix the flashing through
the top ridge of metal
roof.
Water Deflector Flashing Stages
ID: 21169
The screws already in
the roof will need to
be removed before
the flashing fitted.
58
61
62 63
59 60
