Project Timber Evolution My Den 8x6 - Page 20

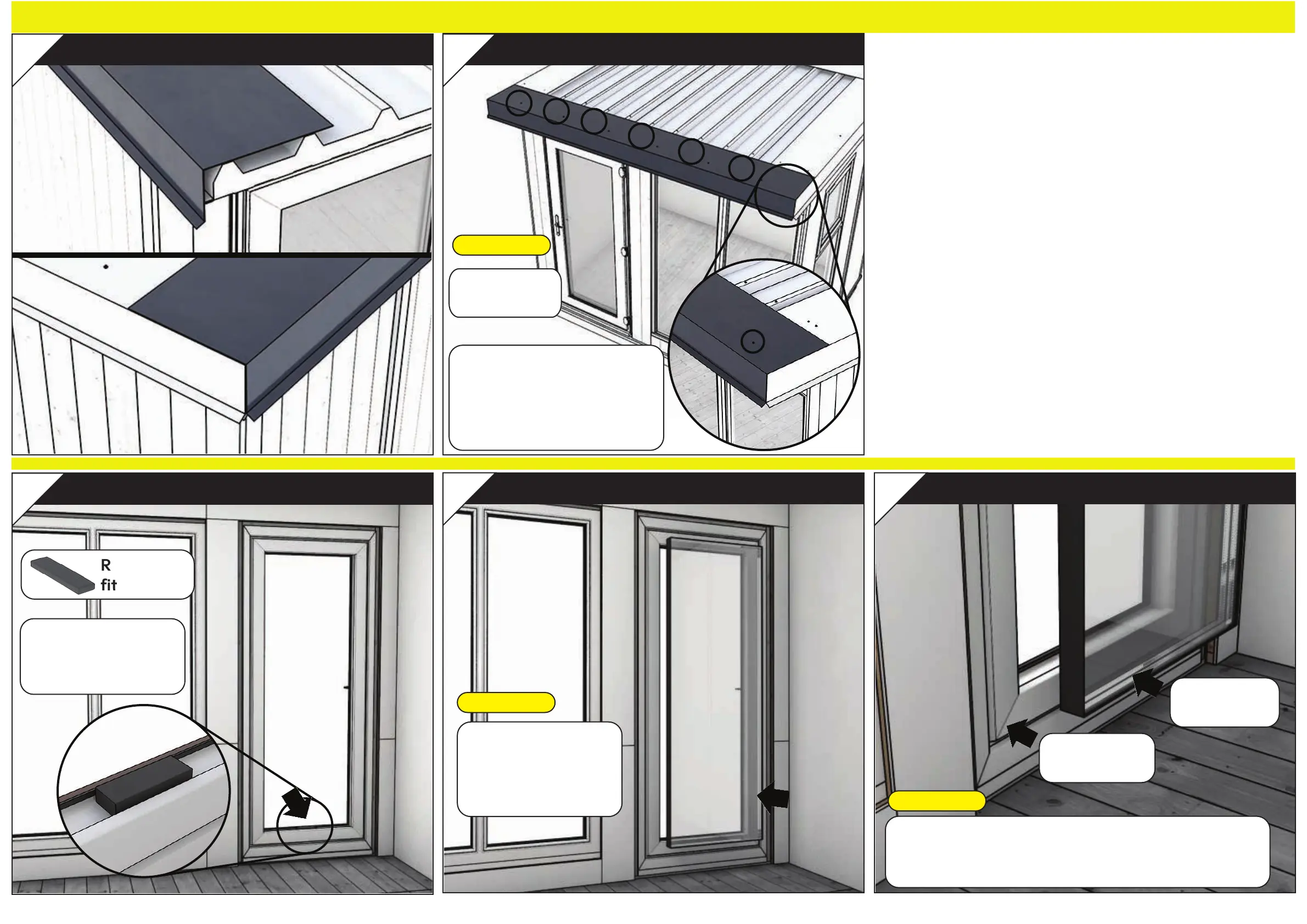

Roof Section Stages
25mm Metal
Roof Screws
Front
Position and fix the
Monopitch Ridge Flashing
to the front of roof sections.
These are the same lenghts
of water deflector flashing
Monopitch Ridge Flashing Stages
ID: 21166
Back
Side
Side
Front
Barge Board Flashing Stages
UPVC Single Door Glazing Unit fixing
Gently position and
fit the door glazing
unit to the uPVC
door frame
ID: 25327
UPVC Single Door Glazing Unit fixing
UPVC Door
frame
Door
Glazing Unit
Position and sit the glazing unit to the bottom
rubber strip. Gently fit the glazing unit to
the door frame.
ID: 25327
Rubber
fitting strip
UPVC Single Door Glazing Unit fixing
Position the rubber
strip to the bottom
of the door frame
64
66
67 68
65
