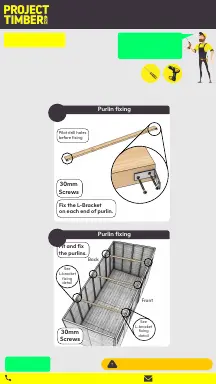

PURLIN FIXING
Check the purlin dimensions.
“Check the dimensions
of your parts”
HOBBYIST PENT
ASSEMBLY INSTRUCTIONS
STAGE 4
page on mobile"
"Pinch to zoom the
Pilot drill holes before fixing
Purlin fixing
Fix the L-Bracket
on each end of purlin.
30mm
Screws
Pilot drill holes
before fixing
Purlin fixing
Fit and fix
the purlins.
Front
Back
30mm
Screws
See
L-bracket
fixing
detail
See
L-bracket
fixing
detail
