TONGUE AND GROOVE
ROOF PANEL OPTION
FIXING
Check the TG roof panel dimensions.
“Check the dimensions
of your TG roof panel
parts”
HOBBYIST PENT
ASSEMBLY INSTRUCTIONS
STAGE 5
page on mobile"
"Pinch to zoom the
Pilot drill holes before fixing
Soffit fixing

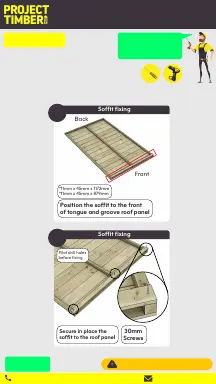

Position the soffit to the front
of tongue and groove roof panel
Front
Back
*11mm x 45mm x 1172mm
*11mm x 45mm x 879mm
Soffit fixing
Secure in place the
soffit to the roof panel
30mm
Screws
Pilot drill holes
before fixing
