PURLIN FIXING
Check the purlin dimensions.
“Check the dimensions
of your parts”
HOBBYIST PENT
ASSEMBLY INSTRUCTIONS
STAGE 4
page on mobile"
"Pinch to zoom the
Pilot drill holes before fixing

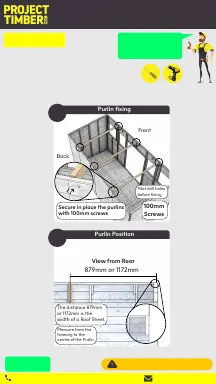

Purlin fixing
Secure in place the purlins
with 100mm screws
Front
Back
100mm
Screws
Pilot drill holes
before fixing
Purlin Position
The distance 879mm
or 1172mm is the
width of a Roof Sheet.
Measure from the
framing to the
centre of the Purlin
View from Rear
879mm or 1172mm
19
20
