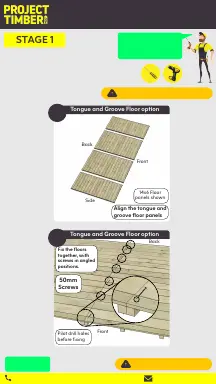

STAGE 1
FLOOR FIXING
FOR TONGUE AND
GROOVE FLOOR OPTION
Check your Floor Panel Sizes
and fixings required.
“Check the
dimensions of
your floor parts"
HOBBYIST PENT
ASSEMBLY INSTRUCTIONS
page on mobile"
"Pinch to zoom the
Ensure the base is level
Pilot drill holes before fixing
Tongue and Groove Floor option
14x6 Floor
panels shown
Align the tongue and
groove floor panels
Side
Front
Back
50mm
Screws
Pilot drill holes
before fixing
Tongue and Groove Floor option
Fix the floors
together, with
screws in angled
positions.
Back
Front
1
2
